Colour: Brushed Copper
Product Details
Constructed from 304 stainless steel, our Font Drain Kit is intended to accompany our Mini Water Filter Tap. It is suitable for your kitchen, bar, or outdoor area and without requiring a traditional sink installation.
Our Font Drain Kit is available in five finishes for aesthetic consistency with your Mini Filter Tap and is suitable for top or undermount installation.
Please note:
– This Font Drain Kit is compatible with our Mini Water Filter Tap, which is sold separately.
Features:
– 304 stainless steel construction offers durability for indoor and commercial use.
– ABI HeatShield PVD Electro Colouring System provides a more corrosion-resistant finish while remaining environmentally friendly.
– Top and Undermount installation.
Dimensions:
– Height: 105mm
– Diameter: 145mm
Product Features
304 Stainless Steel
.svg){kind=icon}
PVD (Physical Vapour Deposition)
Ease of Installation
Material
Construction
304 Stainless Steel
Finish/Coating
(PVD) Brushed Brass - ABI’s Heat Shield – Industrial Grade Electro Colouring System (Physical Vapour Deposition)
*We implement strict quality procedures to minimise colour variations, however we acknowledge that there may be minor differences between batches. We encourage you to check over your items once received to ensure that you are satisfied with the finish. Should you receive anything of concern, our team is here to help! For more information on our finish quality
For more information on our finish quality
Specifications
| SKU | 17373 |
| Weight | 1.3kg |
| ETA | |
| Construction | 304 Stainless Steel |
| Finish/Coating | (PVD) Brushed Brass - ABI’s Heat Shield – Industrial Grade Electro Colouring System (Physical Vapour Deposition) |
| Dimensions (mm) | Diameter: 145mm Height: 105mm |
| What's In The Box? | Font Drain:
1. Bowl 2. Rubber washer 3. Metal washer 4. BSP 1/2 Flat nut 5. BSP 1/2 Nut 6. M4 Bolt 7. Spring washer 8. O-ring 9. Waste receptacle 10. Font grate Font Drain Insert: 11. Font grate 12. Font stem |
| Installation | Undermount or Top Mount |

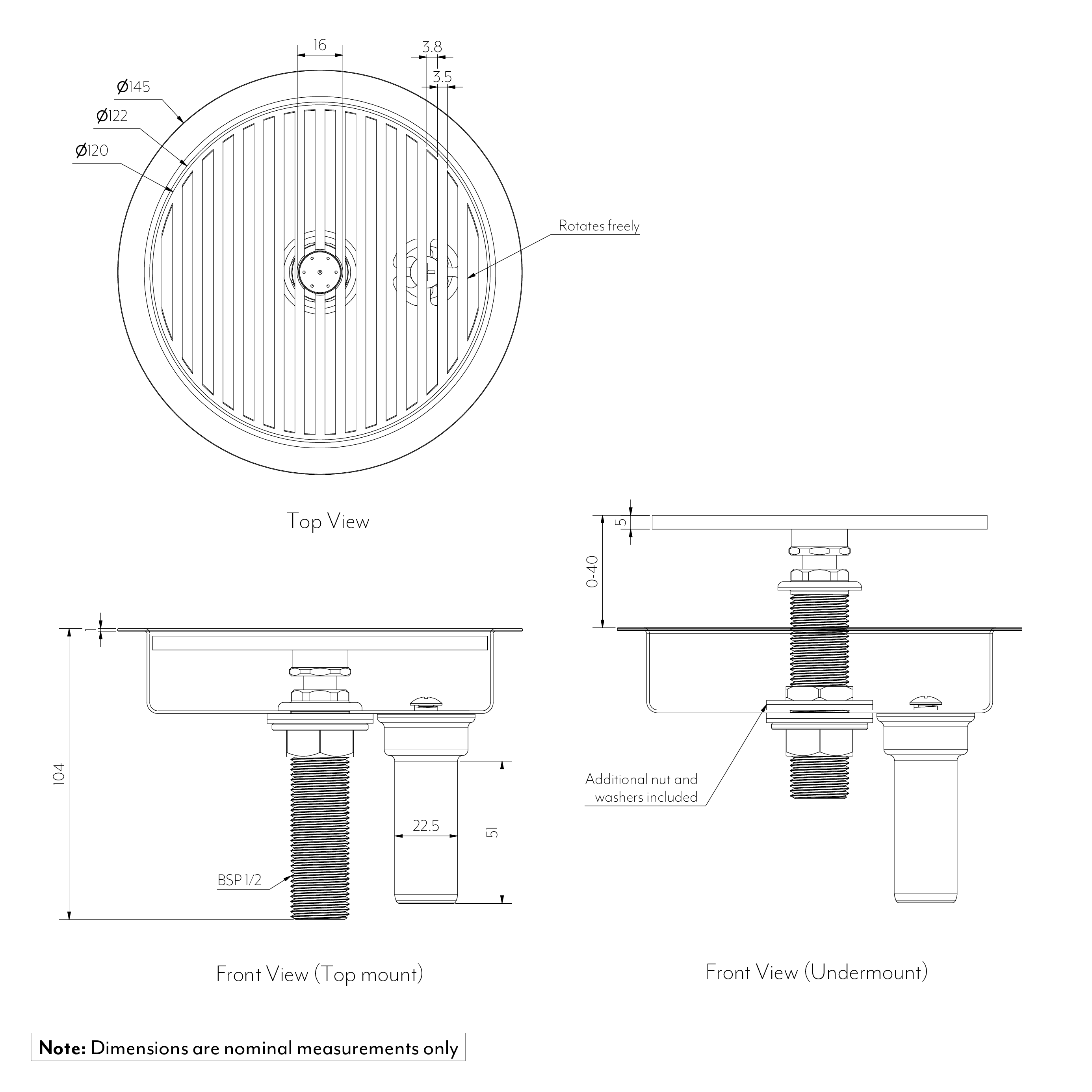

Specification guides can be found under the Downloads tab.
Downloads
Product Documents
| Font Drain Kit - Specification |  |
Bim Files
| View Library |  |
Brushed Copper
At ABI, we use the highest quality materials and colouring processes to ensure a durable and timeless finish that you will love for years to come. Like many other materials, the colour may appear differently from product to product due to lighting within the installation location and reflection on products with different surfaces (flat and curved).
While we do our best to ensure consistency between batches and use strict colour toning and matching quality procedures to lessen variations, we acknowledge that there may be minor variations between batches. We encourage you to check over your items once received to ensure that you are satisfied with the finish. Should you receive anything of concern, our team is here to help!
| PRODUCT DESCRIPTION | RESIDENTIAL WARRANTY | NON-RESIDENTIAL WARRANTY | OUTDOOR WARRANTY | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Name & Finish | SKU | Structure | Finish | Cartridge | Other | Structure | Finish | Cartridge | Other | Structure | Finish | Cartridge | Other |
| Font Drain Kit - Brushed Copper | 17373 | 25 | 5 | - | 2 | 10 | 1 | - | 1 | - | - | - | - |
Product FAQs
How is the Font Drain installed?
The Font Drain supports both top-mount and undermount installation. We strongly recommend that you engage a licensed plumber to install your Font Drain.
What's Included in the box?
Font Drain:
1 x Bowl
1 x Rubber washer
1 x Metal washer
1 x BSP 1/2 Flat nut
1 x BSP 1/2 Nut
1 x M4 Bolt
1 x Spring washer
1 x O-ring
1 x Waste receptacle
1 x Font grate
Font Drain Insert:
1 x Font grate
1 x Font stem
