Colour: Matte Black
Product Details

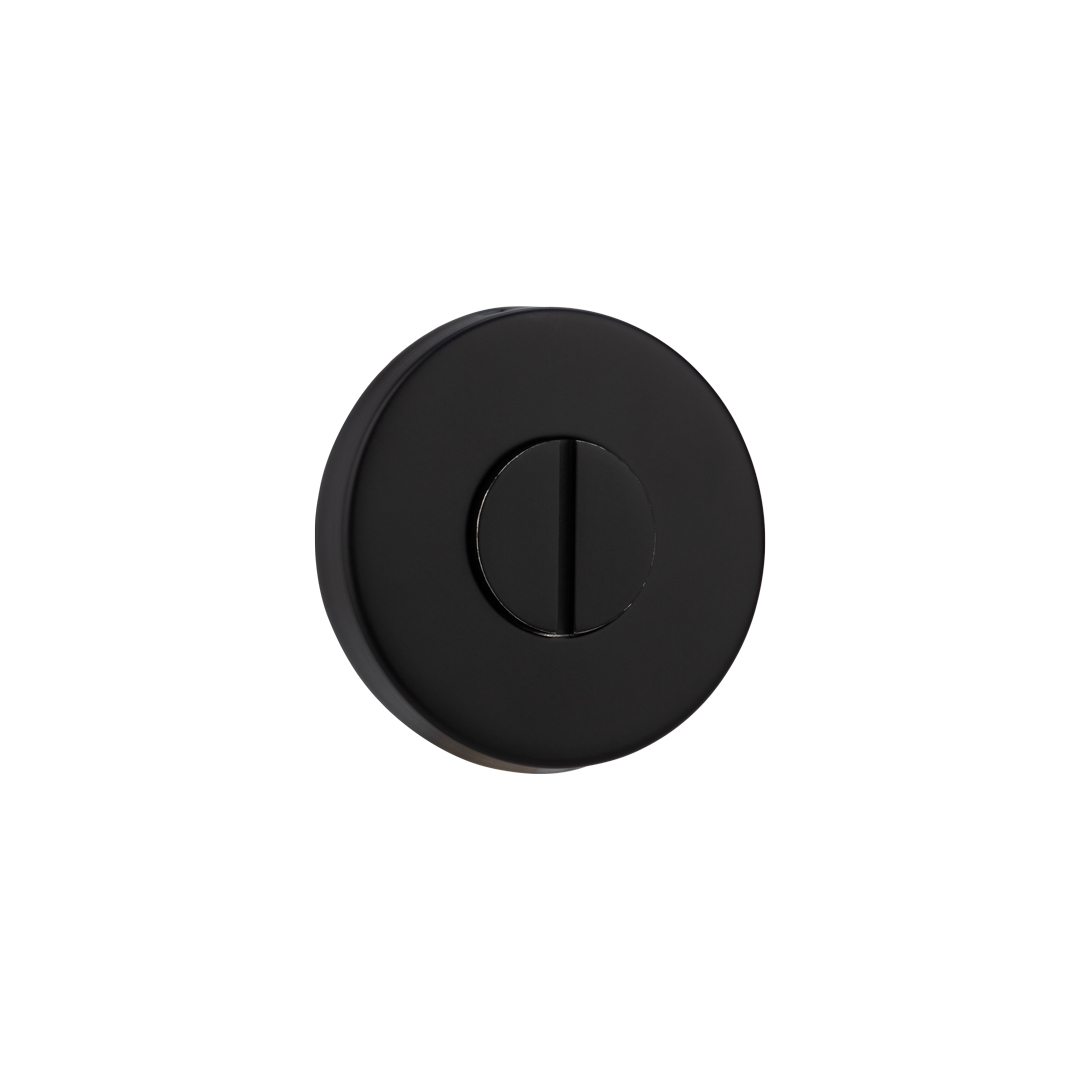

Conveniently paired with the Davis Door Handle , the Dion Privacy Snib Lock is an easy-grasp lock that provides safety and security assurance. Its internal key-less snib locking option is an ideal solution. Turning a coin in the recess engages the emergency release function, retracting the bolt so that the door may be opened from the opposite side.
Complete your bathroom space by browsing through our beautiful range of Bathroom Vanities, Basin Sinks, Bathroom Tapware and other Bathroom Accessories.
Features:
– 304 Stainless Steel
– AEA (Advanced Electroplating Application)

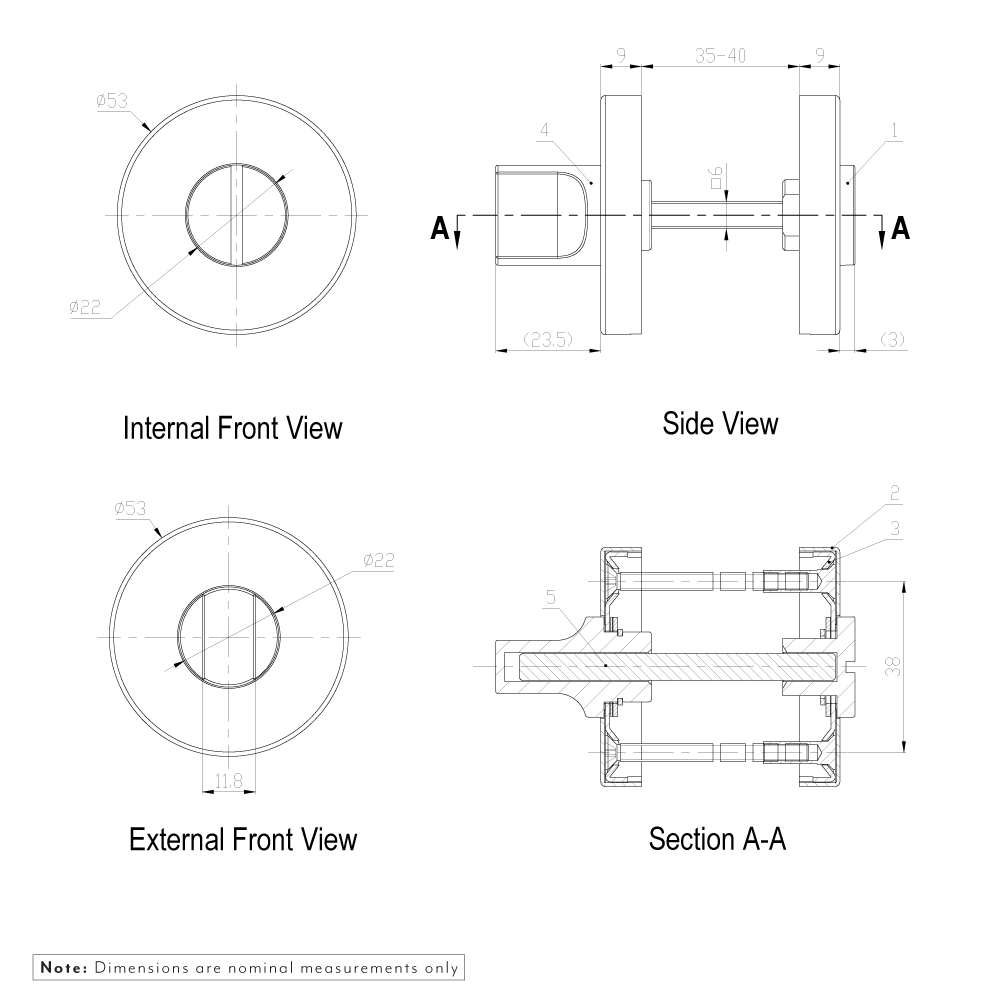

Dimensions:
– Diameter: 53mm
– Internal Projection: 32.5mm
– External Projection: 12mm
Product Features
Material
Finish/Coating
Advanced electroplating application (AEA)
*We implement strict quality procedures to minimise colour variations, however we acknowledge that there may be minor differences between batches. We encourage you to check over your items once received to ensure that you are satisfied with the finish. Should you receive anything of concern, our team is here to help!
For more information on our finish quality
Specifications
| SKU | 12982 |
| Weight | 0.35kg |
| DIMENSIONS (MM) | Diameter: 53mm, Internal Projection: 32.5mm, External projection: 12mm |
| MATERIAL | 304 Stainless Steel |
| FINISH/COATING | Advanced electroplating application (AEA) |
| WHAT'S IN THE BOX? | 4 x Dead Bolt Screws 4 x Cover Plate Screws 2 x Screw Caps 2 x Connection Screws, 1 x Strike Plate Insert 1 x Strike Plate Cover 2 x Cover Plates 1 x Turn Snib 1 x Emergency Release 1 x Tubular Privacy Bolt. |
| Brand | ABI International |
| Disclaimer | Not suitable for Cavity Sliders |
Specification guides can be found under the Downloads tab.
Downloads
Product Documents
| Dion Privacy Snib Lock - Specification |  |
Bim Files
| View Product |  |
| View Library | |
Matte Black
At ABI, we use the highest quality materials and colouring processes to ensure a durable and timeless finish that you will love for years to come. Like many other materials, the colour may appear differently from product to product due to lighting within the installation location and reflection on products with different surfaces (flat and curved).
While we do our best to ensure consistency between batches and use strict colour toning and matching quality procedures to lessen variations, we acknowledge that there may be minor variations between batches. We encourage you to check over your items once received to ensure that you are satisfied with the finish. Should you receive anything of concern, our team is here to help!
| PRODUCT DESCRIPTION | RESIDENTIAL WARRANTY | NON-RESIDENTIAL WARRANTY | OUTDOOR WARRANTY | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Name & Finish | SKU | Structure | Finish | Cartridge | Other | Structure | Finish | Cartridge | Other | Structure | Finish | Cartridge | Other |
| Dion Privacy Snib lock - Matte Black | 12982 | 15 | 2 | - | 2 | 5 | 1 | - | 1 | - | - | - | - |
Product FAQs
Can you provide a complete breakdown of the contents included?
The Dion Privacy Snib Lock comes with the following:
4 x Dead Bolt Screws
4 x Cover Plate Screws
2 x Screw Caps
2 x Connection Screws,
1 x Strike Plate Insert
1 x Strike Plate Cover
2 x Cover Plates
1 x Turn Snib
1 x Emergency Release
1 x Tubular Privacy Bolt.
1x Strike Insert
1x Latch
1x Internal Lock
1 x key lock
Does the lock include an emergency release, if the door is accidentally locked from the inside?
Yes, simply turning a coin in the recess engages the emergency release function, retracting the bolt so that the door may be opened from the opposite side.
