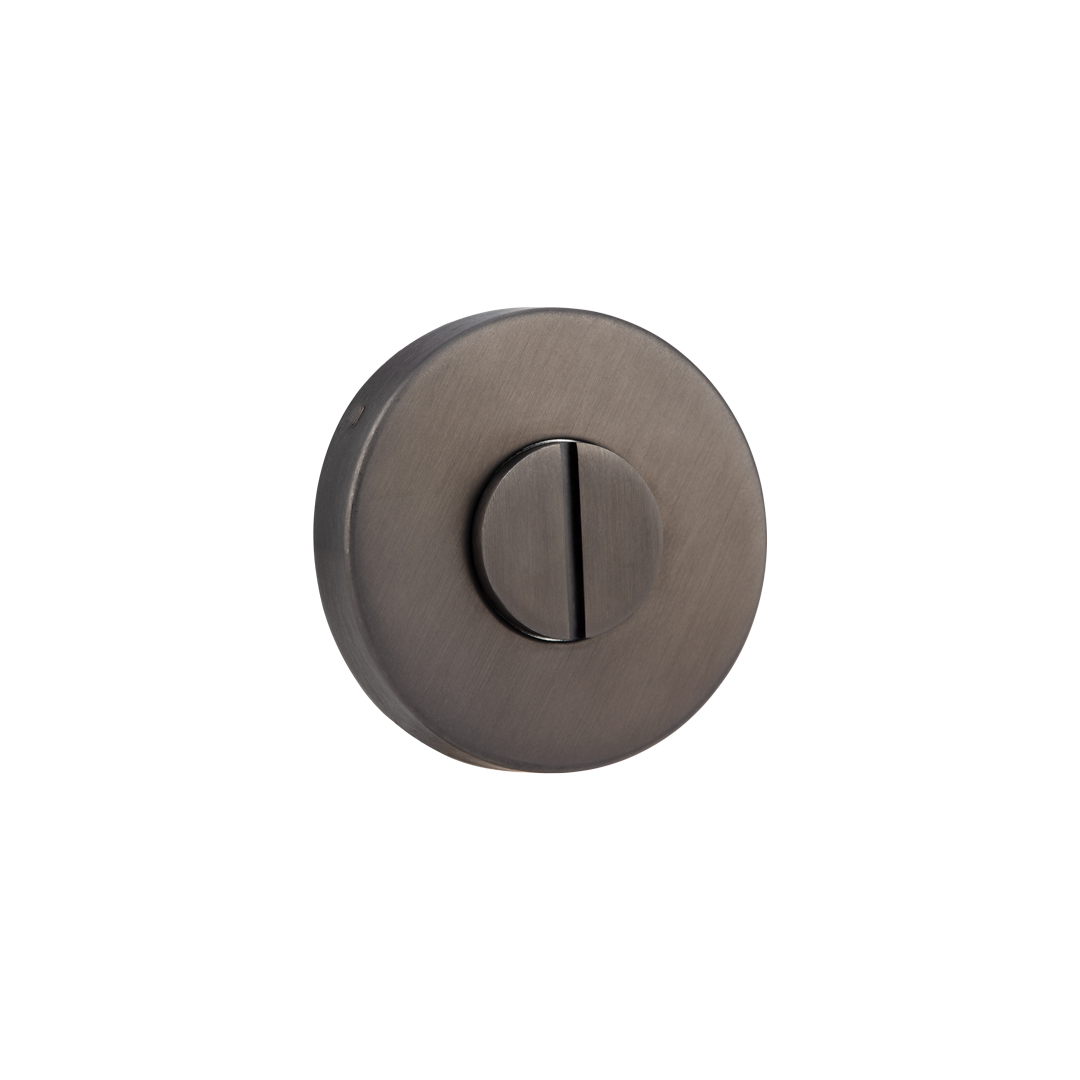

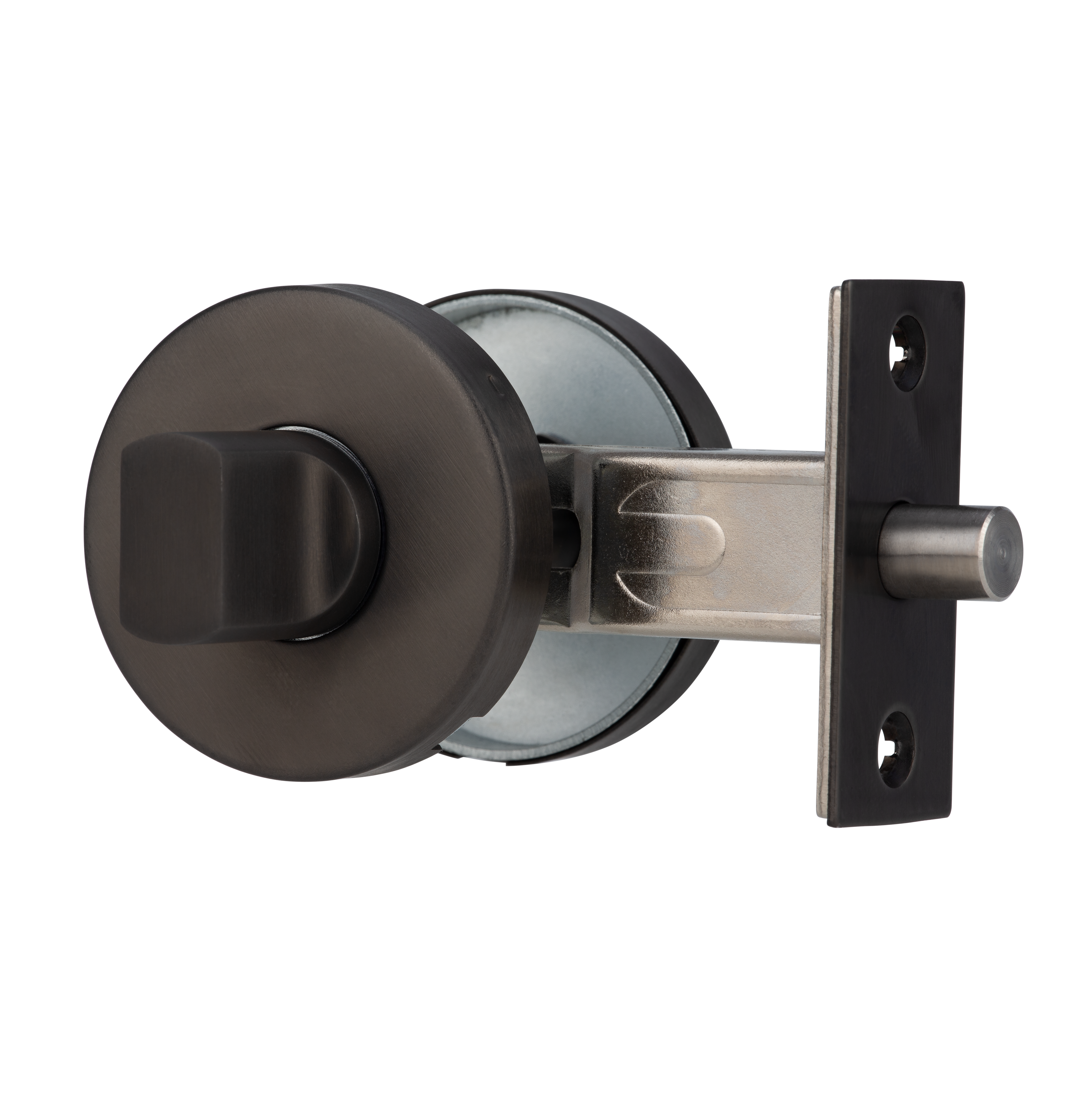

Dion Privacy Snib lock - Brushed Gunmetal

SKU: 12985

on backorder


Dion Privacy Snib lock - Brushed Gunmetal

SKU: 12985

on backorder


$65.90
Add to Cart
Also Bought With
Chevron-Down

Product Details

Conveniently paired with the Davis Door Handle , the Dion Privacy Snib Lock is an easy-grasp lock that provides safety and security assurance. Its internal key-less snib locking option is an ideal solution. Turning a coin in the recess engages the emergency release function, retracting the bolt so that the door may be opened from the opposite side.

Complete your bathroom space by browsing through our beautiful range of Bathroom Vanities, Basin Sinks, Bathroom Tapware and other Bathroom Accessories.

Features:

– 304 Stainless Steel
– PVD (Physical Vapour Deposition)

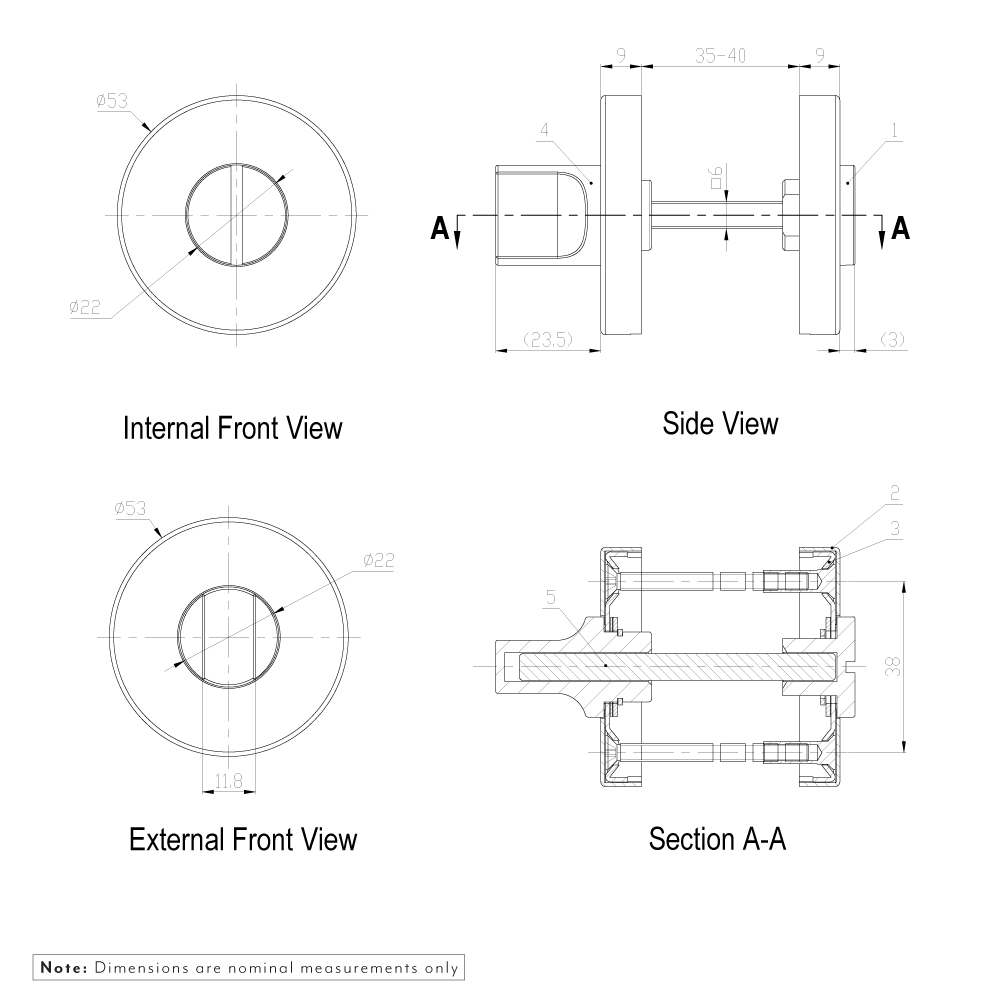

Dimensions:

– Diameter: 53mm
– Internal Projection: 32.5mm
– External Projection: 12mm



Browse our complete range of brushed gunmetal door handles.

Product Info

  • Specifications
  • Warranty
  • Environment
  • Downloads
SKU 12985
Weight 0.35kg
DIMENSIONS (MM) Diameter: 53mm, Internal Projection: 32.5mm, External projection: 12mm
MATERIAL 304 Stainless Steel
FINISH/COATING (PVD) – ABI’s Heat Shield – Industrial Grade Electro Colouring System (Physical Vapour Deposition)
WHAT'S IN THE BOX? 4 x Dead Bolt Screws
4 x Cover Plate Screws
2 x Screw Caps
2 x Connection Screws,
1 x Strike Plate Insert
1 x Strike Plate Cover
2 x Cover Plates
1 x Turn Snib
1 x Emergency Release
1 x Tubular Privacy Bolt.
Brand ABI International
Disclaimer Not suitable for Cavity Sliders

Specification guides can be found under the Downloads tab.

PRODUCT DESCRIPTION RESIDENTIAL WARRANTY NON-RESIDENTIAL WARRANTY OUTDOOR WARRANTY
Name & Finish SKU Structure Finish Cartridge Other Structure Finish Cartridge Other Structure Finish Cartridge Other
Dion Privacy Snib lock - Brushed Gunmetal 12985 15 2 - 2 5 1 - 1 - - - -
Bim Files
View Product Download
View Library Download

Product FAQs


Can you provide a complete breakdown of the contents included?

The Dion Privacy Snib Lock comes with the following:

4 x Dead Bolt Screws
4 x Cover Plate Screws
2 x Screw Caps
2 x Connection Screws,
1 x Strike Plate Insert
1 x Strike Plate Cover
2 x Cover Plates
1 x Turn Snib
1 x Emergency Release
1 x Tubular Privacy Bolt.
1x Strike Insert
1x Latch
1x Internal Lock
1 x key lock


Does the lock include an emergency release, if the door is accidentally locked from the inside?

Yes, simply turning a coin in the recess engages the emergency release function, retracting the bolt so that the door may be opened from the opposite side.
