Sensor Wall-Mounted Spout - Stainless Steel

SKU: 15863

in stock


Sensor Wall-Mounted Spout - Stainless Steel

SKU: 15863

in stock


$589.90
Add to Cart
Also Bought With
Chevron-Down

T41823 | WELS: 6 Star | Litres / min: 5.5

Product Details

Our Sensor Wall-Mounted Spout is a moulded and hollowed tapware fixture, which guarantees long-lasting durability and provides smooth water flow thanks to its soft curvature. Contactless tapware is a safe, convenient, and economical solution for domestic and commercial spaces.

Constructed from 304 stainless steel, this spout combines a beautiful streamlined design with innovative technology. It features an infrared sensor that instantly stops when you remove your hands to experience exceptional water-saving capabilities.

Please Note:

– A mixer will not need to be purchased with this product.

Features:

– Smart infrared sensor-operated spout function for superior water-saving benefits.
– 304 stainless steel construction offers durability for indoor and commercial use.
– AC Power Adapter included for a maintenance-free power option.

Dimensions:

– Height: 96mm
– Length: 222mm
– Backplate Diameter: 60mm
– Spout Reach: 208mm (from the centre of the base to the centre of the spout)
– Spout Body Diameter: 28mm

Browse our complete range of stainless steel tapware.

Product Info

  • Features
  • Specifications
  • Warranty
  • Environment
  • Downloads
304 Stainless Steel
Ease of Installation
Water Saving
SKU 15863
Weight 1.725kg
Brand ABI Interiors
Construction 304 Stainless Steel
Dimensions (mm) Height: 96mm
Length: 222mm
Backplate Diameter: 60mm
Spout Reach: 208mm (from the centre of the base to the centre of the spout)
Spout Body Diameter: 28mm
What's In The Box 1 x Sensor Spout
1 x G1/2 Flexi 500mm
1 x Solenoid
1 x Battery Case
1 x Battery Case Bracket
1 x AC Adapter
1 x Back Plate Bracket
1 x Allen Key
2 x Back Plates
10 x Wall Plugs
10 x M4 Screws
ETA

Specification guides can be found under the Downloads tab.

PRODUCT DESCRIPTION RESIDENTIAL WARRANTY NON-RESIDENTIAL WARRANTY OUTDOOR WARRANTY
Name & Finish SKU Structure Finish Cartridge Other Structure Finish Cartridge Other Structure Finish Cartridge Other
Sensor Wall-Mounted Spout - Stainless Steel 15863 25 5 7 2 5 1 5 1 - - - -
6

Water Rating

5.5

Litres Per Minute

T41823

Registration Number

Bim Files
View Product Download
View Library Download

Product FAQs


Is there an alternative power supply for the Sensor Spouts?

The AC Adapter as well as the four AA batteries can be used to power the Sensor Spouts. If there is a loss of power from the wall outlet, the adapter will automatically switch to battery power. When the batteries run low, the sensor window will begin to flash, indicating that it is time to replace them.


Can I adjust the temperature and flow of the Sensor Wall-Mounted Spout?

To enable any flow functionality, we recommend purchasing a Mini Cistern Stop.

The sensor line is connected to cold water. We recommend purchasing a mixing valve from your local plumbing supplier if you wish to adjust to your desired temperature. ABI does not sell this part.


How long will the batteries last for the Sensor Wall-Mounted Spout?

Four AA batteries will last approximately 1.5 years before a replacement is required. When the voltage of the batteries drops below 4.5, the sensor window will begin to flash, indicating it is time for their replacement.


How do you operate the Sensor Wall-Mounted Spout?

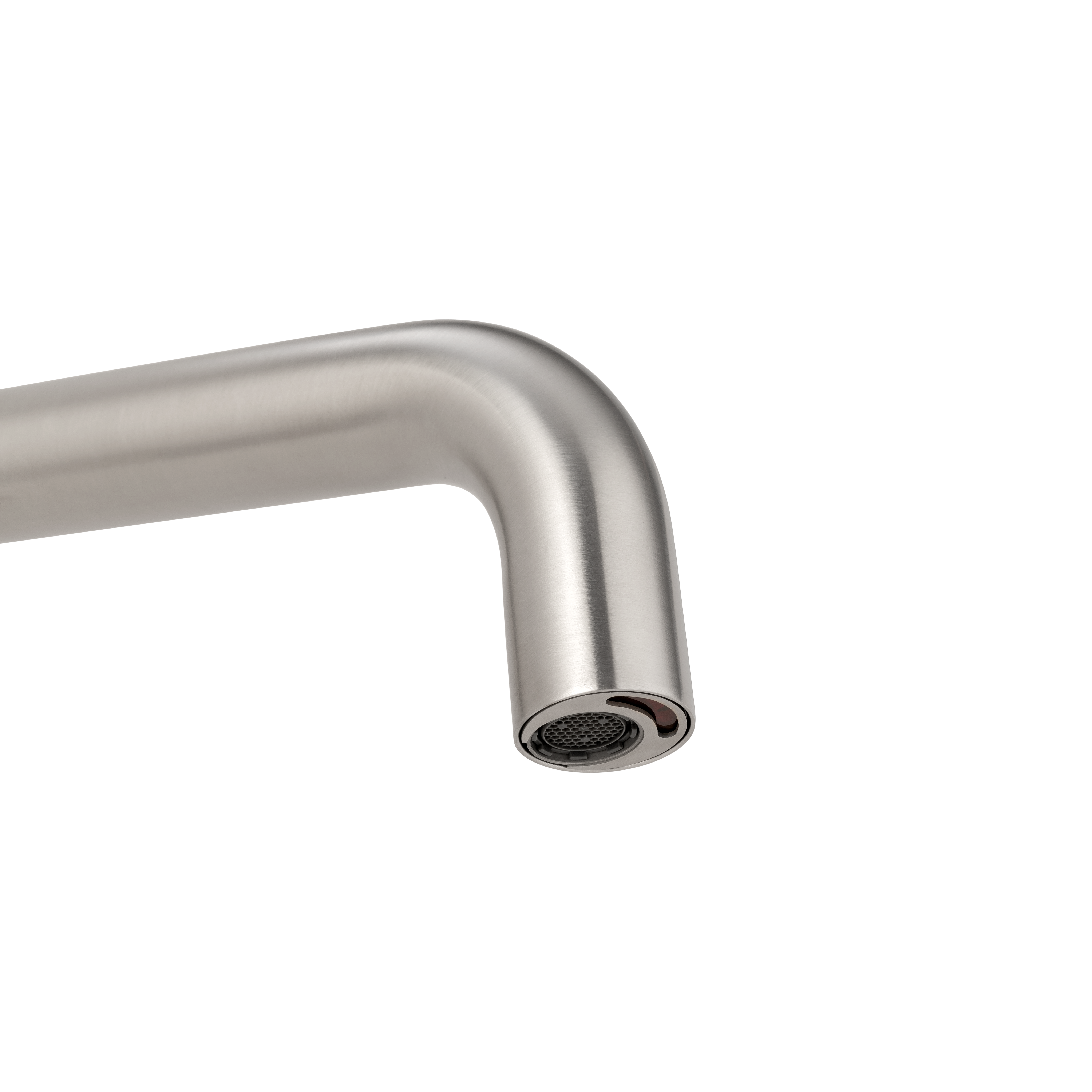

The spout is operated by an infrared sensor located at the tip of the spout. Place your hands directly under the spout tip to turn the water on. Water is only activated when hands are actively triggering the sensor. When your hands are removed, the water flow will instantly stop.


How does the infrared sensor work?

The infrared sensor works by emitting a light that is invisible to the human eye, which bounces off an object (e.g. your hand) and back to the receiver on the sensor. Having your hand or another object under the spout will continuously trigger the sensor, causing the solenoid to remain open and water to flow. The solenoid has been programmed to shut off immediately when the sensor is no longer triggered. As the water shutoff time is less than two seconds, this tap can have a 4.5-star WELS rating.


Can the sensor range be adjusted?

Yes, you can easily adjust the sensor function to suit your requirements. Please refer to the online specification sheet under the ‘Downloads’ tab on the corresponding product page.


What is the AC Adapter reach?

The AC Adapter has a reach of up to 1500mm.
