Product Details

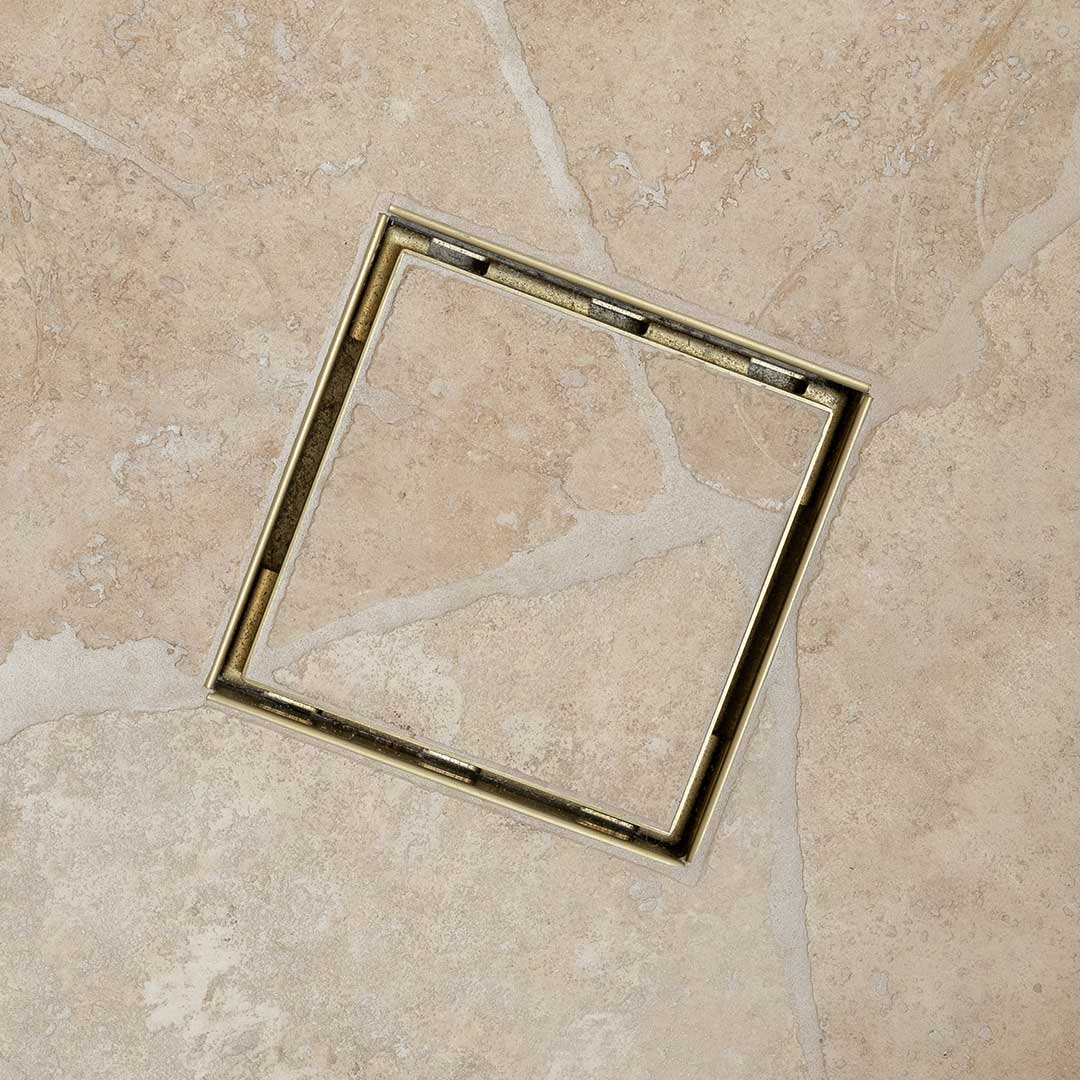

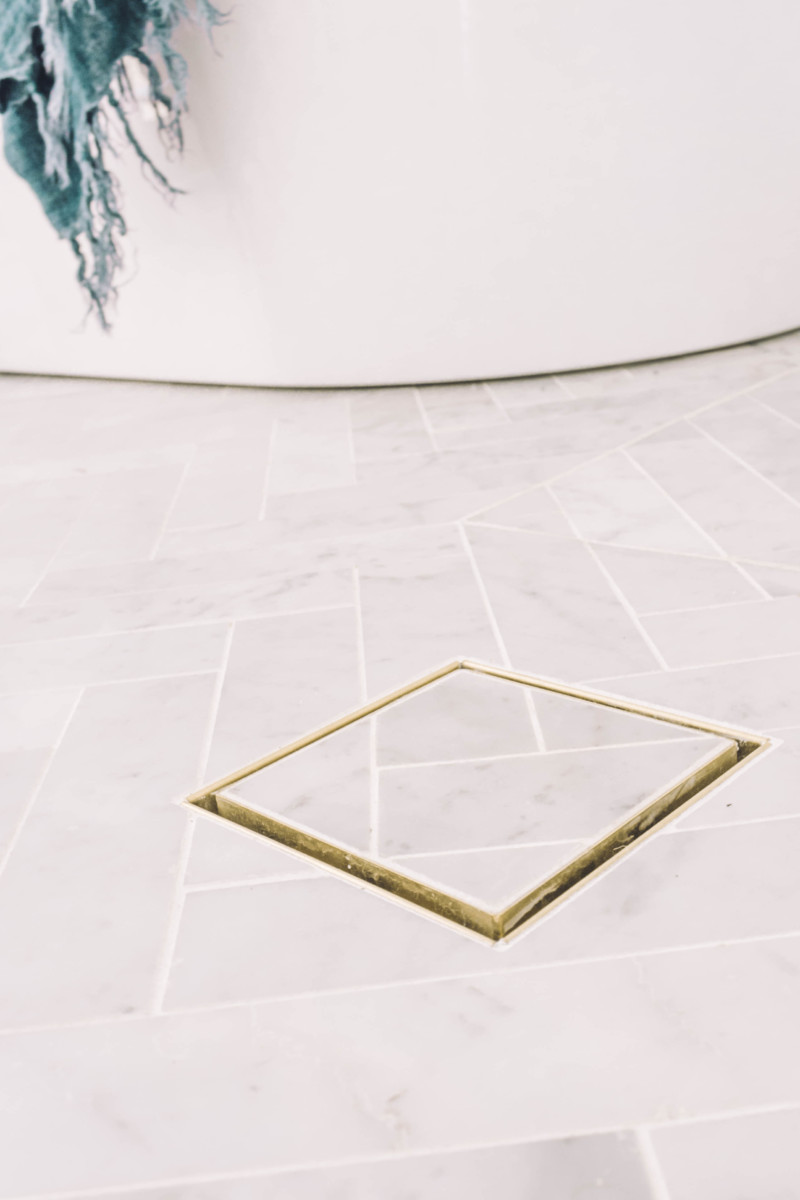

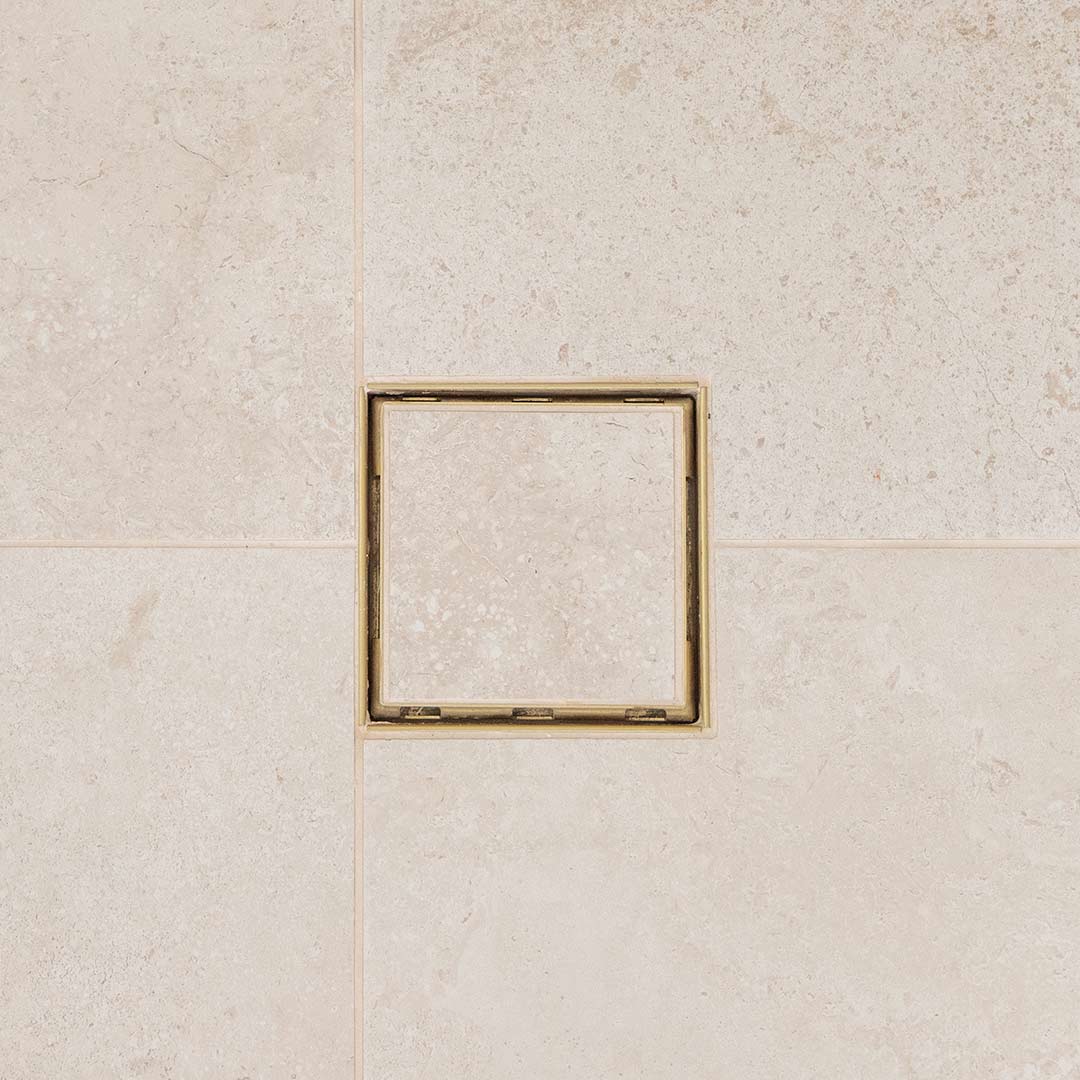

Sharp but also beautifully seamless, the Pixi Tile Floor Waste features an elegant slimline brass rim that blends into the floor tile. It would certainly appeal to minimal enthusiasts who appreciate that every detail in the bathroom, however minor, makes a real difference.
The floor waste has been designed to sit in the tile, which creates a brilliantly flush appearance. Thanks to its hand-welded high-grade stainless steel construction, this smart floor waste is strong and durable, making it an essential component for any bathroom space.
Please Note:
– The Tile Insert measures 15mm. Therefore, the Pixi Tile Insert Floor Waste is suitable for tiles between 10-12mm. However, this will vary depending on individual installation.
Features:
– PVD (Physical Vapour Deposition)
– Stainless Steel Construction

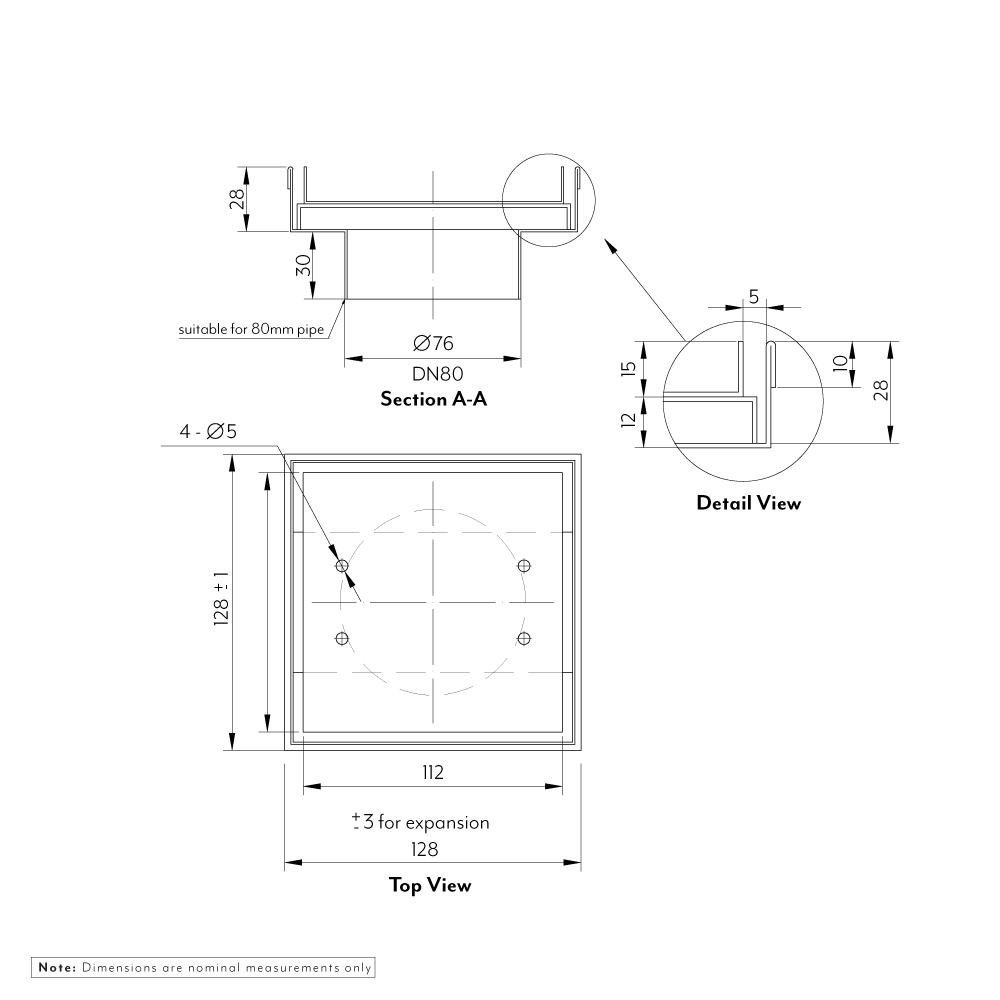

Dimensions:
– Length: 125mm
– Width: 125mm
– Height: 28mm
– Waste Outlet Diameter: 76mm
– Waste Outlet Height: 30mm
Browse our complete range of brushed brass wastes.
Shop Other Colour Options
Shop Other Colour Options
Product Info
304 Stainless Steel
PVD (Physical Vapour Deposition)
Ease of Cleaning
SKU | 10460 |
Weight | 0.6kg |
Brand | ABI Interiors |
Finish/Coating | Brass - ABI's Heat Shield – Industrial grade PVD electro colouring system (Tile is inserted after installation leaving only the rims visible) |
Construction | 304 Stainless Steel |
Dimensions (mm) | Length: 125mm Width: 125mm Height: 28mm Waste Outlet Diameter: 76mm Waste Outlet Height: 30mm |
Warranty | 10 years structural warranty 5 years finish/coating warranty |
Specification guides can be found under the Downloads tab.
PRODUCT DESCRIPTION | RESIDENTIAL WARRANTY | NON-RESIDENTIAL WARRANTY | OUTDOOR WARRANTY | ||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Name & Finish | SKU | Structure | Finish | Cartridge | Other | Structure | Finish | Cartridge | Other | Structure | Finish | Cartridge | Other |
Pixi Tile Insert Floor Waste 125mm - Brushed Brass | 10460 | 10 | 5 | - | 2 | 5 | 1 | - | 1 | - | - | - | - |
Product Documents
Pixi Tile Insert Floor Waste 125mm - Specification |
Product FAQs
What type of coating is used on this product, is it durable?
ABI's Heat Shield – Industrial grade PVD electro colouring system - This is the most durable finish available on the market, the same process is used to strengthen the end of drill bits.
Can this product be used externally?
We don’t currently have a warranty that covers external use however due to its stainless steel construction it would be our most suitable product for exterior use. The PVD coating would be more susceptible to damage however the structural integrity of the floor waste will be fine.
What tile thickness is suitable?
The Pixi Tile Insert Floor Waste is suitable for tiles between 10-12mm. However, this will vary depending on individual installation.
What's in the box?
1 x Pixi Tile Insert Floor Waste
