Pixi Tile Insert Floor Waste 125mm - Brushed Gunmetal
SKU: 11571
Free Delivery on Orders Over £500!
$126.40
Pixi Tile Insert Floor Waste 125mm - Brushed Gunmetal
SKU: 11571
Free Delivery on Orders Over £500!
$126.40
Colour: Brushed Gunmetal
Product Details
Sharp but also beautifully seamless, the Pixi Tile Floor Waste features an elegant slimline brass rim that blends into the floor tile. It would certainly appeal to minimal enthusiasts who appreciate that every detail in the bathroom, however minor, makes a real difference.
The floor waste has been designed to sit in the tile, which creates a brilliantly flush appearance. Thanks to its hand-welded high-grade stainless steel construction, this smart floor waste is strong and durable, making it an essential component for any bathroom space.
Please Note:
– The Tile Insert measures 15mm. Therefore, the Pixi Tile Insert Floor Waste is suitable for tiles between 10-12mm. However, this will vary depending on individual installation.
Features:
– PVD (Physical Vapour Deposition)
– Stainless Steel Construction

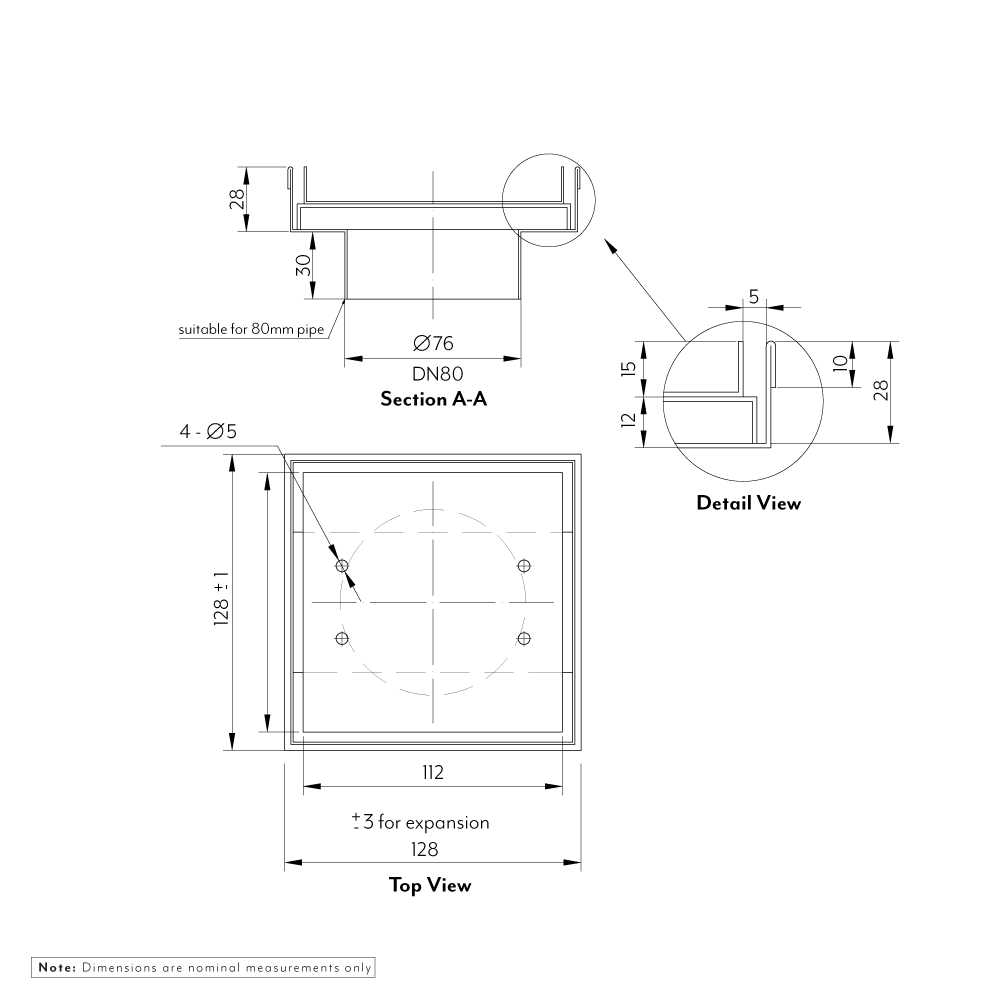

Dimensions:
– Length: 125mm
– Width: 125mm
– Height: 28mm
– Waste Outlet Diameter: 76mm
– Waste Outlet Height: 30mm
Product Features
304 Stainless Steel
.svg){kind=icon}
PVD (Physical Vapour Deposition)
Ease of Cleaning
Material
Construction
304 Stainless Steel
Finish/Coating
Brushed Gunmetal – ABI's Heat Shield – Industrial grade PVD electro colouring system (Tile is inserted after installation leaving only the rims visible)
*We implement strict quality procedures to minimise colour variations, however we acknowledge that there may be minor differences between batches. We encourage you to check over your items once received to ensure that you are satisfied with the finish. Should you receive anything of concern, our team is here to help!
For more information on our finish quality
Specifications
| SKU | 11571 |
| Weight | 0.6kg |
| Brand | ABI Interiors |
| Finish/Coating | Brushed Gunmetal – ABI's Heat Shield – Industrial grade PVD electro colouring system (Tile is inserted after installation leaving only the rims visible) |
| Construction | 304 Stainless Steel |
| Dimensions (mm) | Length: 125mm Width: 125mm Height: 28mm Waste Outlet Diameter: 76mm Waste Outlet Height: 30mm |
| Warranty | 10 years structural warranty 5 years finish/coating warranty |
Specification guides can be found under the Downloads tab.
Downloads
Product Documents
| Pixi Tile Insert Floor Waste 125mm - Specification |  |
Bim Files
| View Library |  |
Brushed Gunmetal
At ABI, we use the highest quality materials and colouring processes to ensure a durable and timeless finish that you will love for years to come. Like many other materials, the colour may appear differently from product to product due to lighting within the installation location and reflection on products with different surfaces (flat and curved).
While we do our best to ensure consistency between batches and use strict colour toning and matching quality procedures to lessen variations, we acknowledge that there may be minor variations between batches. We encourage you to check over your items once received to ensure that you are satisfied with the finish. Should you receive anything of concern, our team is here to help!
| PRODUCT DESCRIPTION | RESIDENTIAL WARRANTY | NON-RESIDENTIAL WARRANTY | OUTDOOR WARRANTY | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Name & Finish | SKU | Structure | Finish | Cartridge | Other | Structure | Finish | Cartridge | Other | Structure | Finish | Cartridge | Other |
| Pixi Tile Insert Floor Waste 125mm - Brushed Gunmetal | 11571 | 10 | 5 | - | 2 | 5 | 1 | - | 1 | - | - | - | - |
Product FAQs
What type of coating is used on this product, is it durable?
ABI's Heat Shield – Industrial grade PVD electro colouring system - This is the most durable finish available on the market, the same process is used to strengthen the end of drill bits.
Can this product be used externally?
We don’t currently have a warranty that covers external use however due to its stainless steel construction it would be our most suitable product for exterior use. The PVD coating would be more susceptible to damage however the structural integrity of the floor waste will be fine.
What tile thickness is suitable?
The Pixi Tile Insert Floor Waste is suitable for tiles between 10-12mm. However, this will vary depending on individual installation.
What's in the box?
1 x Pixi Tile Insert Floor Waste
