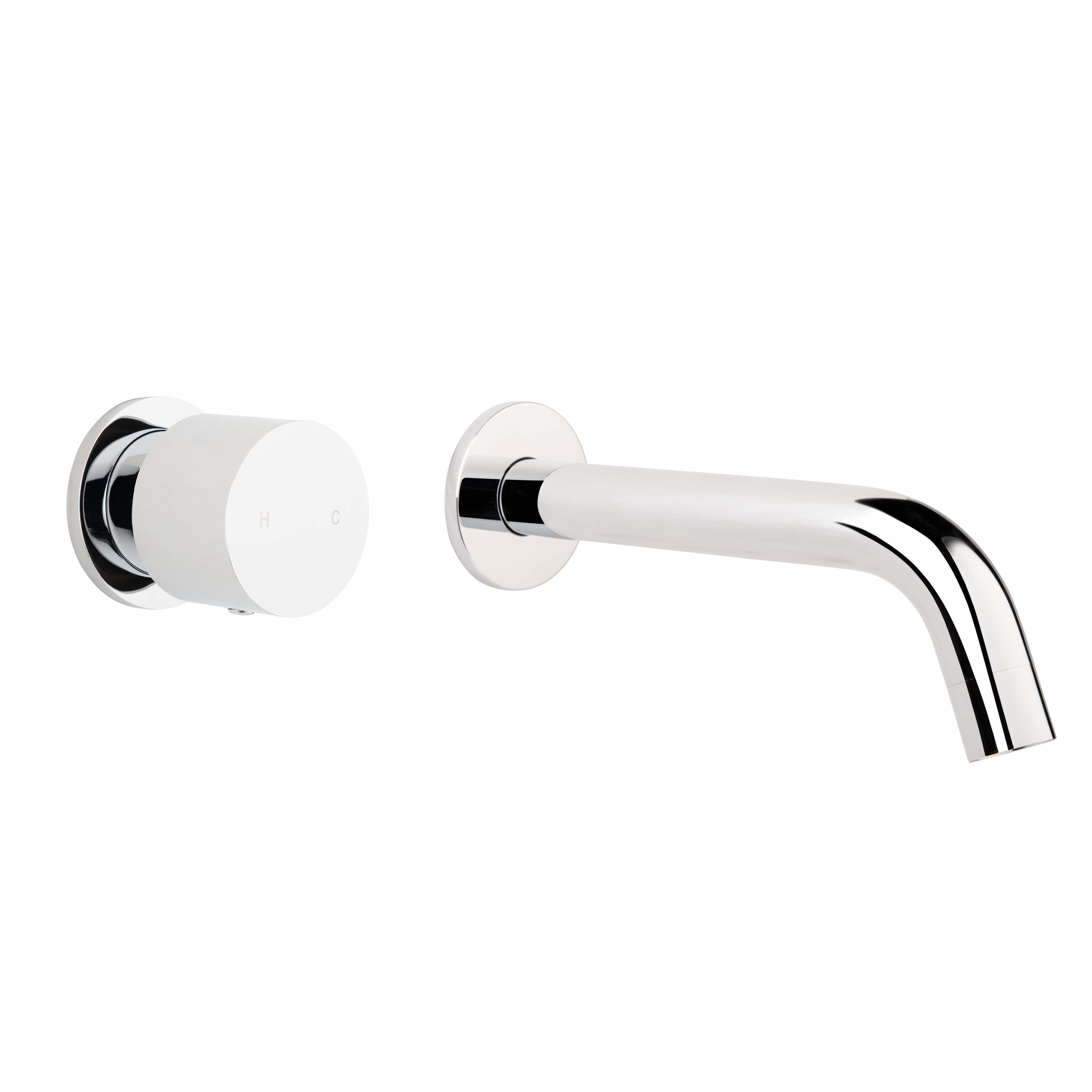

Milani Progressive Mixer & Spout Set - Chrome
SKU: 14284-LF
T43159| WELS: 5 Star | Litres / min: 6
Free Delivery on Orders Over £500!
Milani Progressive Mixer & Spout Set - Chrome
SKU: 14284-LF
T43159| WELS: 5 Star | Litres / min: 6
Free Delivery on Orders Over £500!
Colour: Chrome
Product Details
The Milani Progressive Mixer & Spout Set combines effortless operation with precise temperature control. When using progressive cartridge technology you twist in one clockwise motion starting at low-pressure cold up to high pressure cold. Once turned halfway warm water is introduced at full pressure. The dial is then precisely adjustable for the perfect temperature, increasing to maximum heat at a complete turn.
Paired with a sleek, wall-mounted brass spout, the set is ideal for both basins and baths, bringing refined functionality and sophistication to any bathroom.
Using our Infiniti Technology, the progressive mixer and spout have been specifically manufactured to allow you to change your handle style after installation without compromising your existing waterproofing or tiling.
Please Note:
– A Flow Valve Insert – Non-Restricting is available to be installed inside our Spouts (26 L/M at 500KPA).
Features:
– Progressive Cartridge Technology
– Precise Temperature Control
– PVD (Physical Vapour Deposition)
Dimension:
Mixer:
– Diameter: 54mm
– Backplate Diameter: 62mm
Spout:
– Spout Reach: 200mm
– Backplate Diameter: 60mm
Product Features
Solid Brass
.svg){kind=icon}
AEA (Advanced Electroplating Application)
Progressive Cartridge Technology
Material
Construction
Solid Brass
Finish/Coating
Chrome – Advanced electroplating application (AEA)
*We implement strict quality procedures to minimise colour variations, however we acknowledge that there may be minor differences between batches. We encourage you to check over your items once received to ensure that you are satisfied with the finish. Should you receive anything of concern, our team is here to help!
For more information on our finish quality
Specifications
| SKU | 14284-LF |
| Weight | 1.45kg |
| Brand | ABI Interiors |
| Finish/Coating | Chrome – Advanced electroplating application (AEA) |
| Construction | Solid Brass |
| Mixer Dimensions (mm) | Diameter: 54mm Backplate Diameter: 62mm |
| Spout Dimensions (mm) | Spout Reach: 200mm Backplate Diameter: 60mm |
| What's In The Box | In-Wall Kit (required for rough-in): Body + Fixing Screws Locking Nut Ceramic Cartridge Handle Kit (required for fit-off): 1 x Short Sleeve (15mm) 1 x Long Sleeve (30mm) 1 x Dome 1 x Handle 1 x Backplate 1 x Allen Key Wall Mounted Spout (required for fit-off): 1 x Backplate 1 x Spout |
| ETA | |
| Lead Free Compliant | Yes - Compliant with the Lead-Free requirements of the National Construction Code Volume Three |
Specification guides can be found under the Downloads tab.
Downloads
Product Documents
| Milani Progressive Mixer & Spout Set - Specification |  |
| Milani Progressive Mixer & Spout Set - Scope of Use | |
Bim Files
| View Product |  |
| View Collection | |
| View Library | |
| PRODUCT DESCRIPTION | RESIDENTIAL WARRANTY | NON-RESIDENTIAL WARRANTY | OUTDOOR WARRANTY | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Name & Finish | SKU | Structure | Finish | Cartridge | Other | Structure | Finish | Cartridge | Other | Structure | Finish | Cartridge | Other |
| Milani Progressive Mixer & Spout Set - Chrome (Infiniti) LF | 14284-LF | - | - | - | - | - | - | - | - | - | - | - | - |
5
Water Rating
6
Litres Per Minute
T43159
Registration Number
Product FAQs
Can I swap out my handle design or finish after installation if I change my mind without compromising my tiles or damaging the waterproofing?
Yes, our Infiniti Technology allows the flexibility and the convenience to have your handles swapped out after installation of the rough-in without damaging waterproofing or tiling.
How do I determine which sleeve length is appropriate for my fitting?
The sleeve length you select for your in-wall component is determined by the depth and thickness of your wall.
What parts are included with my purchase?
You will receive the following:
In-Wall Kit (required for rough-in):
Body + Fixing Screws
Locking Nut
Ceramic Cartridge
Handle Kit (required for fit-off):
1 x Short Sleeve (15mm)
1 x Long Sleeve (30mm)
1 x Dome
1 x Handle
1 x Backplate
1 x Allen Key
Wall Mounted Spout (required for fit-off):
1 x Backplate
1 x Spout
