Product Details

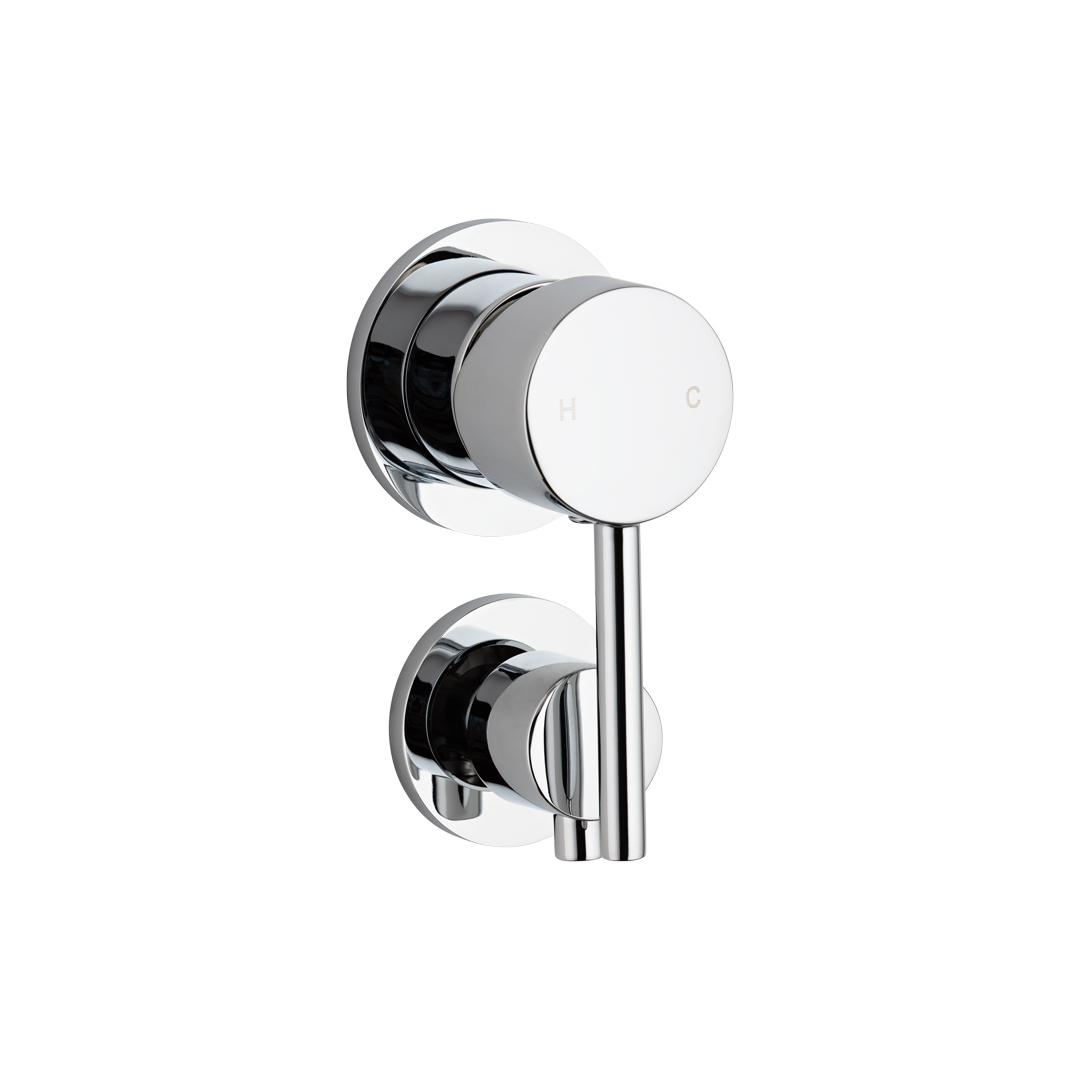

The Elysian Shower Bottom Diverter allows you to easily switch between rain head and hand held function or between bath spout and rain shower, by a simple rotation of the knob.
Pull on the mixer handle to adjust pressure control and twist left and right for temperature control. Functionality at its finest.
Further enhance your bathroom space, with our range of shower rails, shower heads, hand held shower heads, droppers and arms together with our basins and freestanding baths.
Features:
– AEA (Advanced Electroplating Application)
– Pressure control
– Temperature control

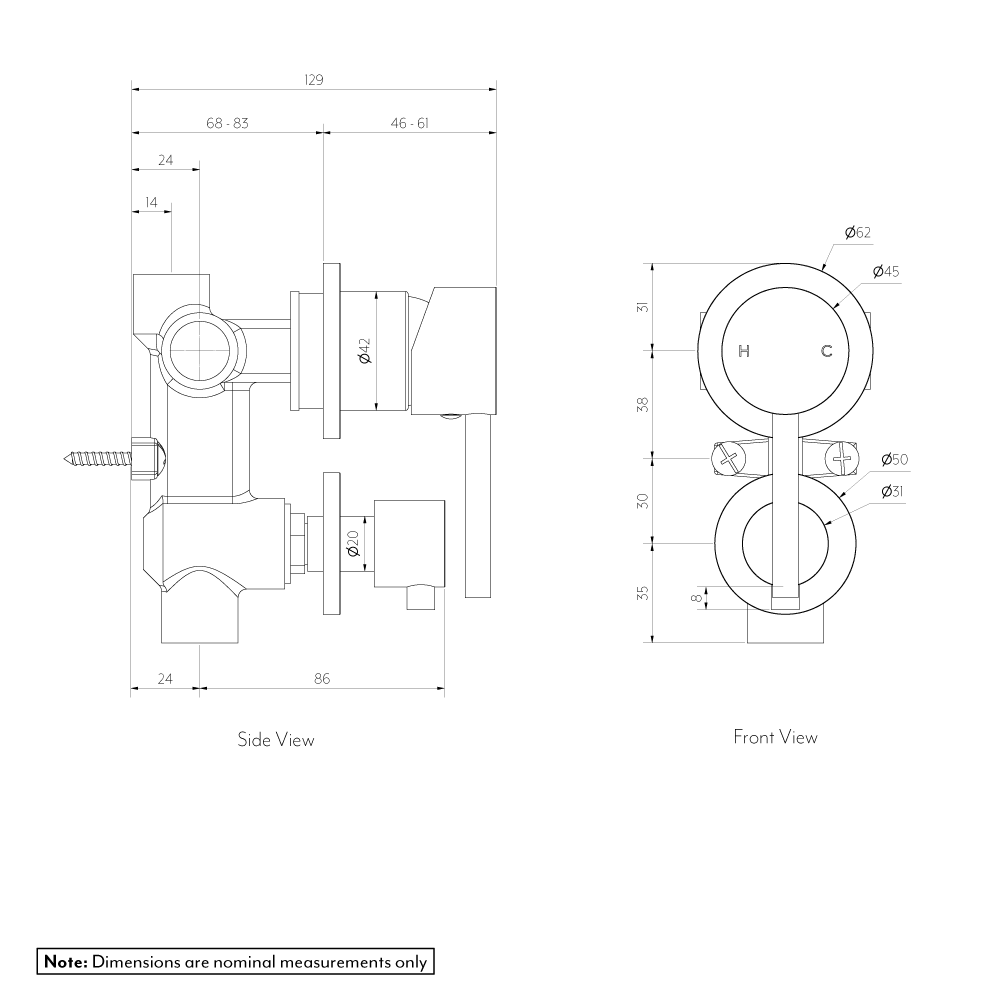

Dimensions:
– Backplate Diameter: 62mm & 50mm
– Handle Length: 86mm
This mixer is suited to mains pressure. If you are on an unequal pressure system, please select yes when prompted to add the unequal pressure component to your cart. Please consult your plumber if you are unsure of your water pressure.
Browse our complete range of chrome tapware.
Shop Other Colour Options
Shop Other Colour Options
Product Info
| SKU | 14382 |
| Weight | 1.5kg |
| Brand | ABI Interiors |
| Material | Solid Brass |
| Finish / Coating | Chrome – Advanced electroplating application (AEA) |
| Dimensions (mm) | Backplate Diameter: 62mm & 50mm Handle Length: 86mm |
| Function | Turn Button |
| Warranty | 25 years structural warranty 7 years cartridge warranty 2 years finish/coating warranty |
| What's In The Box | In-Wall Kit (required for rough-in): 1 x Shower Bottom Diverter Body 2 x Fixing Screw 1 x Diverter Cartridge 1 x Mixer Cartridge 1 x Locking Nut Handle Kit (required for fit-off): 1 x Short (15mm) Sleeve 1 x Long (30mm) Sleeve 1 x Dome 1 x Backplate 1 x Handle 1 x Grub Screw 1 x Grub Screw Cap 1 x Allen Key Diverter Kit (required for fit-off): 1 x Diverter Sleeve 1 x Diverter Backplate 1 x Diverter Button 1 x Diverter Stick |
| ETA | Mid April |
Specification guides can be found under the Downloads tab.
| PRODUCT DESCRIPTION | RESIDENTIAL WARRANTY | NON-RESIDENTIAL WARRANTY | OUTDOOR WARRANTY | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Name & Finish | SKU | Structure | Finish | Cartridge | Other | Structure | Finish | Cartridge | Other | Structure | Finish | Cartridge | Other |
| Elysian Shower Bottom Diverter - Chrome | 14382 | - | - | - | - | - | - | - | - | - | - | - | - |
Product Documents
| Elysian Shower Bottom Diverter |  |
Bim Files
| View Library | |
Product FAQs
What type of coating is used on this product, is it durable?
Advanced electroplating application (AEA) - This is an extremely durable coating, far superior to a powdercoated coating.
Can this product be used externally / outside?
ABI's warranty does not cover external use due to the coatings being put under much harsher conditions and UV light. However the structural integirty of the tap would be fine.
