Elysian Sensor Commercial Pull-Out Kitchen Mixer - Brushed Gunmetal
SKU: 14616
T41205 (V)| WELS: 5 Star | Litres / min: 6
Free Delivery on Orders Over £500!
Elysian Sensor Commercial Pull-Out Kitchen Mixer - Brushed Gunmetal
SKU: 14616
T41205 (V)| WELS: 5 Star | Litres / min: 6
Free Delivery on Orders Over £500!
Colour: Brushed Gunmetal
Product Details

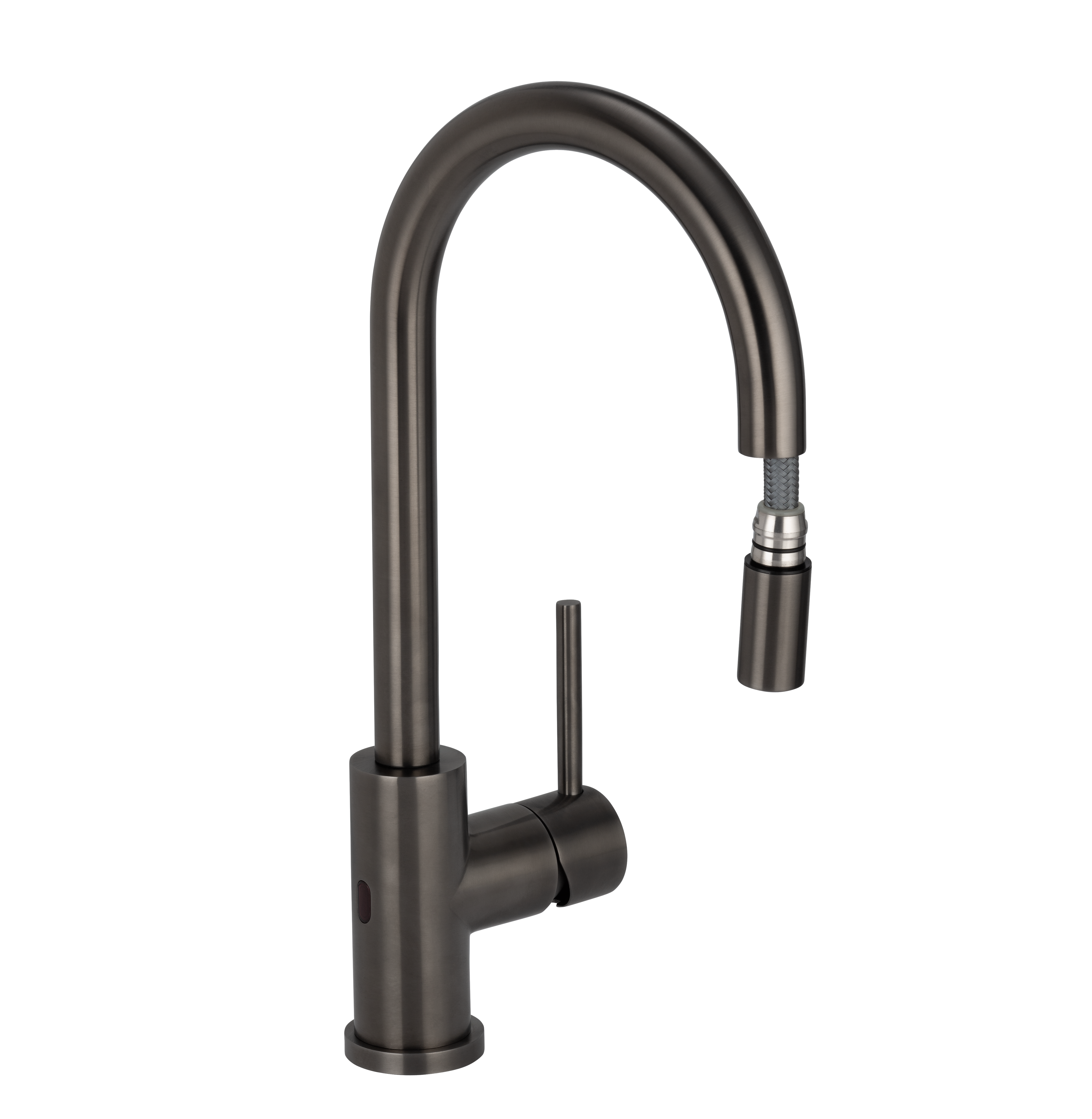

The Elysian Sensor Commercial Pull-Out Kitchen Mixer in Brushed Gunmetal is crafted from 304 stainless steel and finished with PVD (Physical Vapour Deposition) colouring, offering exceptional resistance to wear while delivering a sophisticated, modern aesthetic for indoor residential and commercial use. Featuring a ceramic cartridge and a 360-degree swivel spout with a convenient pull-out nozzle, it ensures precise temperature control and effortless usability. Its adjustable infrared sensor features a 30-second automatic shut-off to support water efficiency and enhanced hygiene.
Browse our complete range of brushed gunmetal taps.
Browse our gunmetal tapware, or explore our complete range of tapware.
Product Features
Material
Construction
304 Stainless Steel
Finish/Coating
(PVD) Brushed Gunmetal - ABI’s Heat Shield – Industrial Grade Electro Colouring System (Physical Vapour Deposition)
*We implement strict quality procedures to minimise colour variations, however we acknowledge that there may be minor differences between batches. We encourage you to check over your items once received to ensure that you are satisfied with the finish. Should you receive anything of concern, our team is here to help!
For more information on our finish quality
Specifications
| SKU | 14616 |
| Weight | 3.7kg |
| Brand | ABI Interiors |
| Finish/Coating | (PVD) Brushed Gunmetal - ABI’s Heat Shield – Industrial Grade Electro Colouring System (Physical Vapour Deposition) |
| Construction | 304 Stainless Steel |
| Dimensions | Height: 438mm Reach: 228mm Hole Cutout size: 35mm |
| Swivel | Yes |
| What's In The Box | 1 x Pull-out Kitchen Mixer 3 x G 1/2 Flexy 1 x G 1/2 Female adapter 2 x Diagonal Compression tee 1 x G1/2 to G1/2 Flexy 1 x Solenoid 1 x Battery Case 1 x Battery Case Bracket 1 x Pull-out Weight 4 x M4 x 25mm Timber screws 2 x M5 x 20mm bolts |
| Warranty | 25 Years structural warranty 7 Years cartridge warranty 5 Years finish/coating warranty |
Specification guides can be found under the Downloads tab.
Downloads
Product Documents
| Elysian Sensor Commercial Pull-Out Kitchen Mixer - Specification |  |
| Elysian Sensor Commercial Pull-Out Kitchen Mixer - Scope of Use | |
Bim Files
| View Product |  |
| View Collection | |
| View Library | |
Brushed Gunmetal
At ABI, we use the highest quality materials and colouring processes to ensure a durable and timeless finish that you will love for years to come. Like many other materials, the colour may appear differently from product to product due to lighting within the installation location and reflection on products with different surfaces (flat and curved).
While we do our best to ensure consistency between batches and use strict colour toning and matching quality procedures to lessen variations, we acknowledge that there may be minor variations between batches. We encourage you to check over your items once received to ensure that you are satisfied with the finish. Should you receive anything of concern, our team is here to help!
| PRODUCT DESCRIPTION | RESIDENTIAL WARRANTY | NON-RESIDENTIAL WARRANTY | OUTDOOR WARRANTY | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Name & Finish | SKU | Structure | Finish | Cartridge | Other | Structure | Finish | Cartridge | Other | Structure | Finish | Cartridge | Other |
| Elysian Sensor Commercial Pull-Out Kitchen Mixer - Brushed Gunmetal | 14616 | Lifetime | 15 | Lifetime | 2 | Lifetime | 15 | Lifetime | 2 | - | - | - | - |
5
Water Rating
6
Litres Per Minute
T41205 (V)
Registration Number
Product FAQs
Can I disable the sensor function?
Yes, you can easily disable the sensor function and use this product manually as a regular kitchen mixer instead.
Can the sensor range be adjusted?
Yes, you can easily adjust the sensor function to suit your requirements. Please refer to the instructions enclosed with purchase.
Can the automatic shutoff period be adjusted?
No, the 30-second shut-off period is set during the manufacturing stage.
Are there any key considerations when installing this product?
Please ensure there is adequate space under your sink for the pull-out weight to hang and enable the nozzle to retract correctly. The solenoid and battery case must be secured to the wall under the sink, (using the brackets provided) so that it does not obstruct the pull-out weight from functioning.
What is the extension length of the Elysian Sensor Commercial Pull-Out Kitchen Mixer?
The pull-out has an extension length of 400mm. The length of the pull-out, which acts as an anchor, may vary depending on where the solenoid is mounted.
What is the AC Adapter reach?
The AC Adapter has a reach of up to 1500mm.
What batteries are used with the Elysian Sensor Commercial Pull-Out Kitchen Mixer?
4x AA batteries are required for this product, which will need to be purchased separately.
Can the mixer orientation be altered if the handle sits too close to the splashback?
Due to the location of the infrared sensor, there is only one orientation of the mixer. However, we have an alternative cartridge available to allow for ease of use. Please contact our team for further information.
How do you operate the Elysian Sensor Commercial Pull-Out Kitchen Mixer?
To turn water on, wave your hand within a 15cm distance of the sensor — located on the opposite side of the mixer handle. Wave again to turn the water off. As a safety measure, if the water hasn't been actioned off, it will automatically stop after 30 seconds. Alternatively, you can manually operate the Elysian Sensor Commercial Pull-Out Kitchen Mixer as a conventional mixer.
Can I adjust the temperature and flow of the Elysian Sensor Commercial Pull-Out Kitchen Mixer?
To enable any flow functionality, we recommend purchasing a Mini Cistern Stop.
Â
The sensor line is connected to cold water. We recommend purchasing a mixing valve from your local plumbing supplier if you wish to adjust to your desired temperature. ABI does not sell this part.
