Product Details

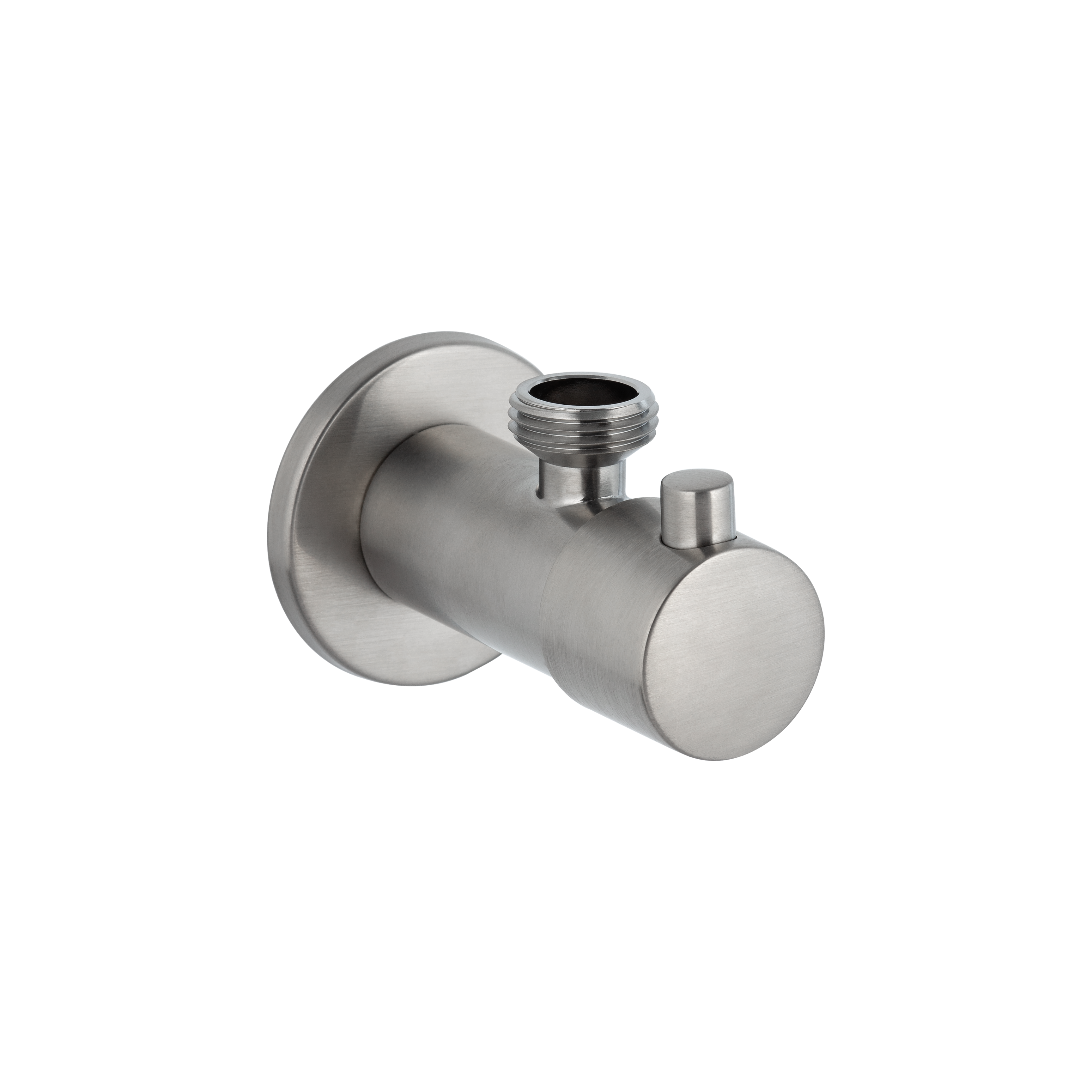

The Mini Cistern Stop provides a modern take on the often-overlooked bathroom component.
Its streamlined, minimalistic design adds the perfect final touch to your bathroom fixtures.
Constructed from solid brass, the Mini Cistern Stop allows your contemporary vision to tie in cohesively.
Features:
– Utilises innovative ceramic disc technology.
– Handle is made of solid brass to assure longevity.
– 1/2 Inch thread outlet connection.
– Quarter turn handle dial.
– Solid brass construction.

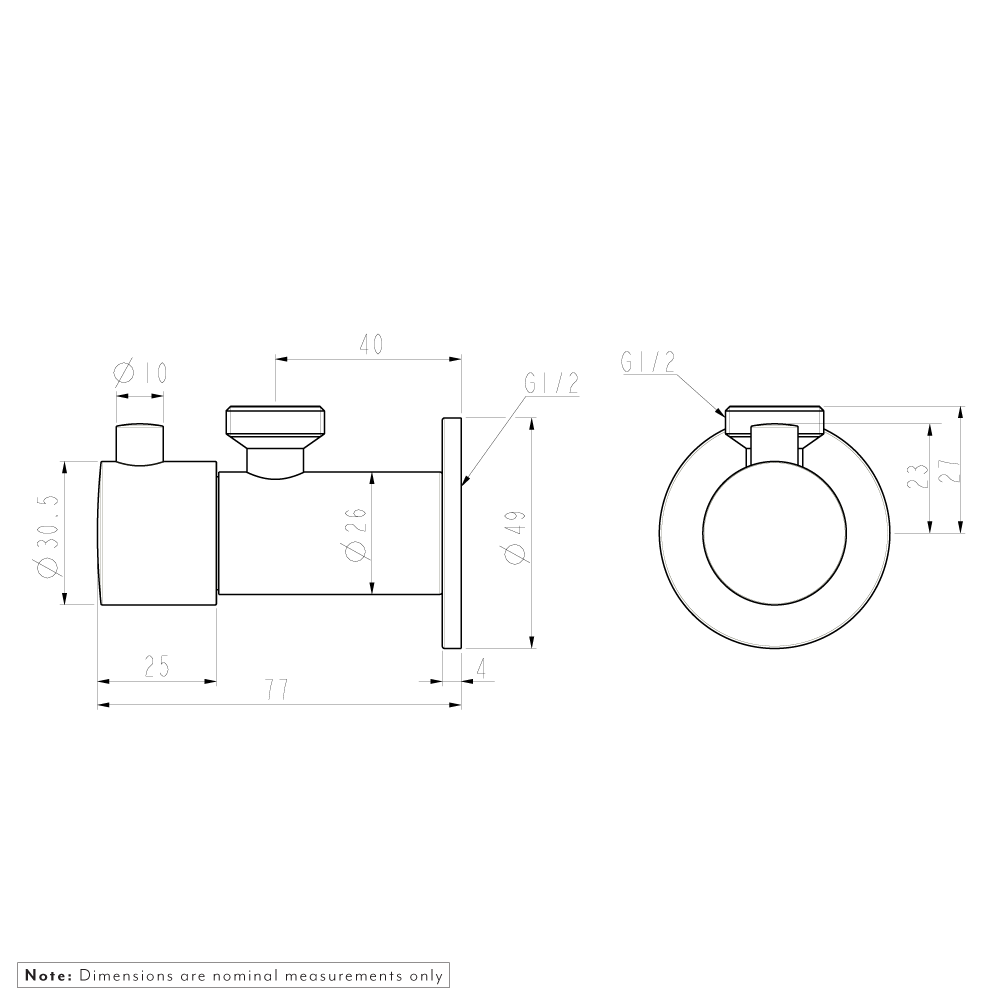

Dimensions:
Projection: 77mm
Handle length: 38mm
Backplate diameter: 49mm
Warranty:
25 years structural warranty
10 years cartridge warranty
5 years finish/coating warranty
Shop Other Colour Options
Shop Other Colour Options
Product Info
Solid Brass
PVD (Physical Vapour Deposition)
Universal Fitting
SKU | 12305 |
Weight | 0.28kg |
Brand | ABI-International |
DIMENSIONS (MM) | Projection: 77, Handle length: 38, Backplate diameter: 49 |
MATERIAL | Solid Brass |
FINISH/COATING | ABI's Heat Shield – Industrial Grade PVD Electro Colouring System |
Outlet Connection | 1/2 Inch thread |
Handle Dial | Quarter Turn |
Spindle Type | Ceramic Disc |
Specification guides can be found under the Downloads tab.
PRODUCT DESCRIPTION | RESIDENTIAL WARRANTY | NON-RESIDENTIAL WARRANTY | OUTDOOR WARRANTY | ||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Name & Finish | SKU | Structure | Finish | Cartridge | Other | Structure | Finish | Cartridge | Other | Structure | Finish | Cartridge | Other |
Mini Cistern Stop - Brushed Nickel | 12305 | 25 | 5 | 7 | 2 | 10 | 1 | 5 | 1 | - | - | - | - |
Product Documents
Mini Cistern Stop - Specification |
Product FAQs
What is a Mini Cistern Stop?
A single valve allowing you to isolate the water for any servicing requirements. A Mini Cistern Stop creates a "block off" point between your toilet and your main water supply
What is the connection size?
1/2 female inlet to 1/2 male outlet connection.
Do I need one?
You will require one if your cistern is not concealed.
Does this include hoses?
No.
Can I use a Mini Cistern Stop to turn off my water for the shower/basin?
Our Mini Cistern Stops can also be used for a basin or kitchen isolation valve. Our cistern stop acts as an isolation valve with a 1/2 connection and 1/2 outlet
