T41855 (V)| WELS: 6 Star | Litres / min: 5.5
Product Details

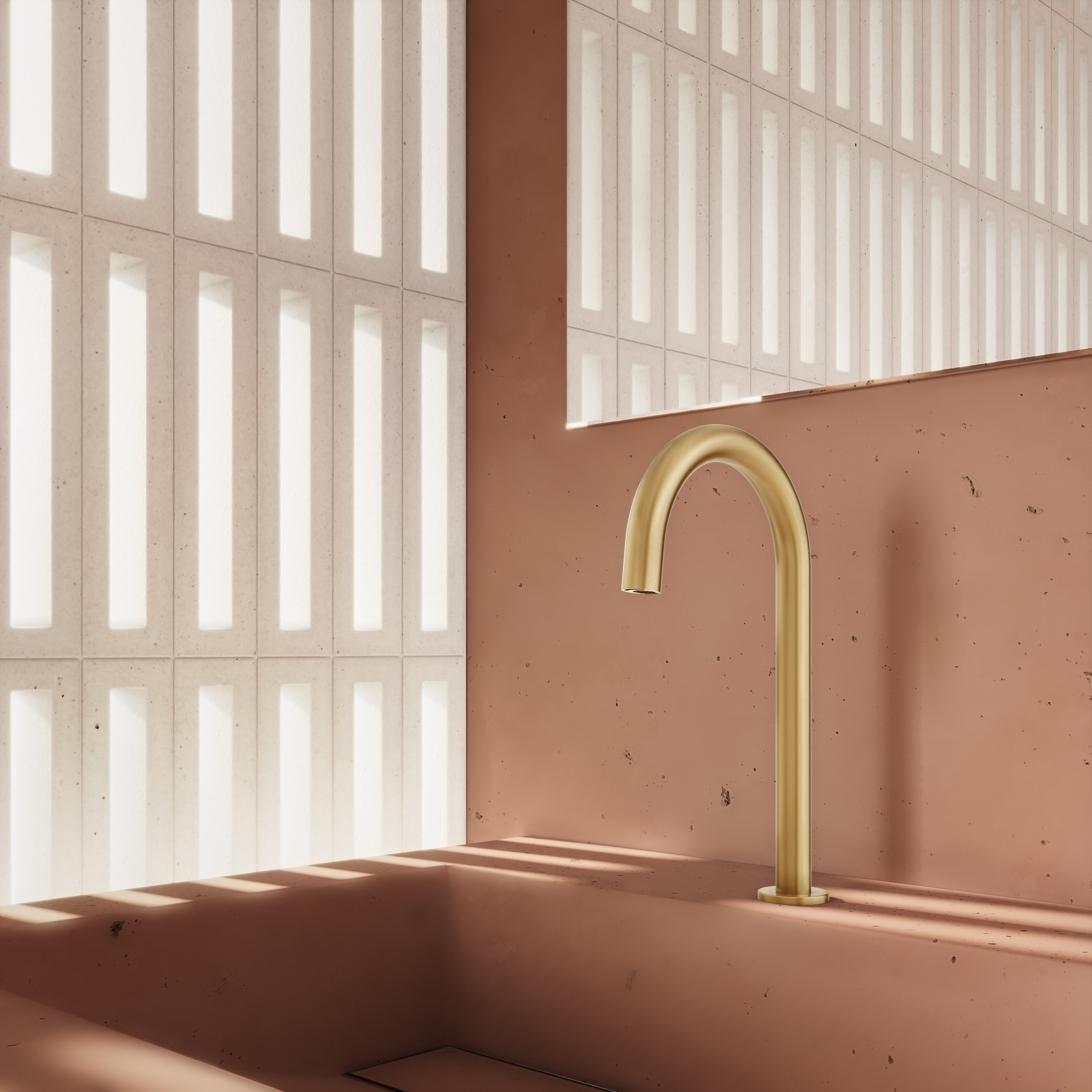

Our Sensor Gooseneck Hob Spout is a moulded and hollowed tapware fixture that guarantees long-lasting durability and provides smooth water flow thanks to its soft curvature. Contactless tapware is a safe, convenient, and economical solution for domestic and commercial spaces.
This spout is constructed from 304 stainless steel and has a sleek, aesthetically-pleasing design. Thanks to sophisticated infrared technology, the water instantly stops when you remove your hands to ensure premium water-saving capabilities.
Please Note:
– A mixer will not need to be purchased with this product.
Features:
– Smart infrared sensor-operated spout function for superior water-saving benefits.
– 304 stainless steel construction offers durability for indoor and commercial use.
– AC Power Adapter included for a maintenance-free power option.
Dimensions:
– Height: 369mm
– Length: 229mm
– Baseplate Diameter: 56mm
– Spout Reach: 187mm (from the centre of the base to the centre of the spout)
– Spout Body Diameter: 28mm
Browse our complete range of brushed brass tapware.
Shop Other Colour Options
Shop Other Colour Options
Product Info
304 Stainless Steel
PVD (Physical Vapour Deposition)
Water Saving
SKU | 15754 |
Weight | 1.725kg |
Brand | ABI Interiors |
Finish/Coating | (PVD) Brushed Brass - ABI’s Heat Shield – Industrial Grade Electro Colouring System (Physical Vapour Deposition) |
Construction | 304 Stainless Steel |
Dimensions (mm) | Height: 369mm Length: 229mm Baseplate Diameter: 56mm Spout Reach: 187mm (from the centre of the base to the centre of the spout) Spout Body Diameter: 28mm |
What's In The Box | 1 x Sensor Hob Spout 1 x G1/2 Flexi - 500mm 1 x Solenoid 1 x Battery Case 1 x Battery Bracket 1 x AC Adapter 1 x Allen Key 4 x Wall Plugs 4 x M4 Screws |
ETA |
Specification guides can be found under the Downloads tab.
PRODUCT DESCRIPTION | RESIDENTIAL WARRANTY | NON-RESIDENTIAL WARRANTY | OUTDOOR WARRANTY | ||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Name & Finish | SKU | Structure | Finish | Cartridge | Other | Structure | Finish | Cartridge | Other | Structure | Finish | Cartridge | Other |
Sensor Gooseneck Hob Spout - Brushed Brass | 15754 | 25 | 5 | 7 | 2 | 5 | 1 | 5 | 1 | - | - | - | - |
6
Water Rating
5.5
Litres Per Minute
T41855 (V)
Registration Number
Product Documents
Sensor Gooseneck Hob Spout - Specification |
Product FAQs
Is there an alternative power supply for the Sensor Spouts?
The AC Adapter as well as the four AA batteries can be used to power the Sensor Spouts. If there is a loss of power from the wall outlet, the adapter will automatically switch to battery power. When the batteries run low, the sensor window will begin to flash, indicating that it is time to replace them.
Does the Sensor Gooseneck Hob Spout swivel?
No, the spout is fixed due to the aerator sensor position.
Can I adjust the temperature and flow of the Sensor Gooseneck Hob Spout?
To enable any flow functionality, we recommend purchasing a Mini Cistern Stop.
The sensor line is connected to cold water. We recommend purchasing a mixing valve from your local plumbing supplier if you wish to adjust to your desired temperature. ABI does not sell this part.
How long will the batteries last for the Sensor Gooseneck Hob Spout?
Four AA batteries will last approximately 1.5 years before a replacement is required. When the voltage of the batteries drops below 4.5, the sensor window will begin to flash, indicating it is time for their replacement.
How do you operate the Sensor Gooseneck Hob Spout?
The spout is operated by an infrared sensor located at the tip of the spout. Place your hands directly under the spout tip to turn the water on. Water is only activated when hands are actively triggering the sensor. When your hands are removed, the water flow will instantly stop.
How does the infrared sensor work?
The infrared sensor works by emitting a light that is invisible to the human eye, which bounces off an object (e.g. your hand) and back to the receiver on the sensor. Having your hand or another object under the spout will continuously trigger the sensor, causing the solenoid to remain open and water to flow. The solenoid has been programmed to shut off immediately when the sensor is no longer triggered. As the water shutoff time is less than two seconds, this tap can have a 4.5-star WELS rating.
Can the sensor range be adjusted?
Yes, you can easily adjust the sensor function to suit your requirements. Please refer to the online specification sheet under the ‘Downloads’ tab on the corresponding product page.
What is the AC Adapter reach?
The AC Adapter has a reach of up to 1500mm.
