Product Details
This is a discontinued item and is no longer available for purchase. Check out our bottle traps range for similar alternatives
Modern in design, the Marli Bottle Trap Square is the perfect addition to any wall-mounted basin. With a standard thread size and vertical and depth adjustment, the Marli Bottle Trap is easy to install and has extended piping both vertically and horizontally that can be cut to size depending on setbacks from the wall or height from the basin sink.
The Marli Bottle Trap Square’s minimalistic style suits a variety of basin designs and is only available in matte black and brushed nickel.
Please Note:
– The Marli Square Bottle Trap comes with a 40mm adaptor.
– The Marli Bottle Trap Square is compatible with our Avi Pop-Up Wastes (sold separately).
Features:
– Easy to clean solid brass construction.
– ABI HeatShield PVD Electro Colouring System provides a more corrosion-resistant finish.
– A compact design for a stylish space-saving solution.

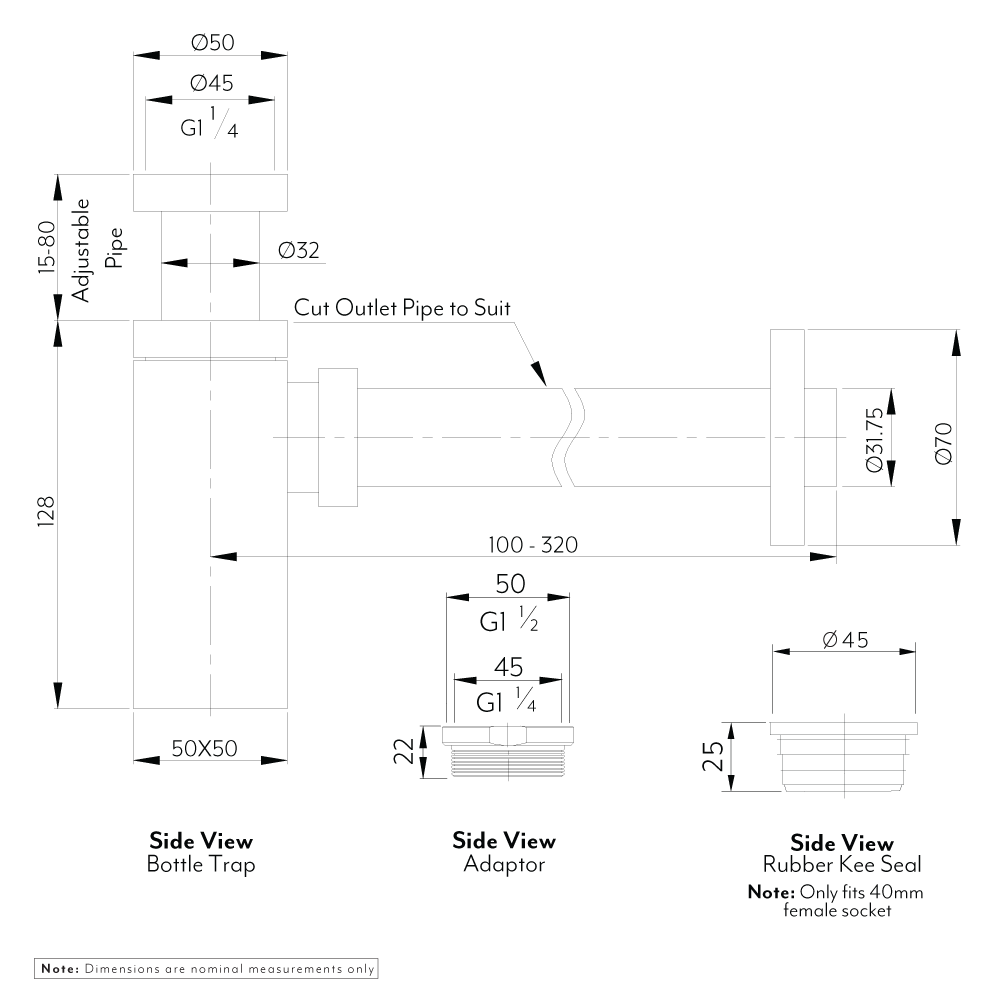

Dimensions:
– Bottle trap base: 50 x 50mm
– Bottle trap base height: 128mm
– Adjustable pipe range: 15-80mm
– Outlet pipe range: 100-320mm
Shop Other Colour Options
Shop Other Colour Options
Product Info
Solid Brass
.svg){kind=icon}
PVD (Physical Vapour Deposition)
Ease of Cleaning
Brushed Nickel
At ABI, we use the highest quality materials and colouring processes to ensure a durable and timeless finish that you will love for years to come. Like many other materials, the colour may appear differently from product to product due to lighting within the installation location and reflection on products with different surfaces (flat and curved).
While we do our best to ensure consistency between batches and use strict colour toning and matching quality procedures to lessen variations, we acknowledge that there may be minor variations between batches. We encourage you to check over your items once received to ensure that you are satisfied with the finish. Should you receive anything of concern, our team is here to help!
| SKU | 11919 |
| Weight | 2kg |
| Brand | ABI Interiors |
| Finish/Coating | (PVD) Brushed Nickel - ABI’s Heat Shield – Industrial Grade Electro Colouring System (Physical Vapour Deposition) |
| Construction | Solid Brass |
| Dimensions (mm) | Bottle trap base: 50 x 50mm Bottle trap base height: 128mm Adjustable pipe range: 15-80mm Outlet pipe range: 100-320mm |
| What's In The Box | 1 x Kee Seal 1 x Outlet Pipe 1 x Wall Flange 1 x 40mm Adaptor 1 x Bottle Trap |
Specification guides can be found under the Downloads tab.
| PRODUCT DESCRIPTION | RESIDENTIAL WARRANTY | NON-RESIDENTIAL WARRANTY | OUTDOOR WARRANTY | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Name & Finish | SKU | Structure | Finish | Cartridge | Other | Structure | Finish | Cartridge | Other | Structure | Finish | Cartridge | Other |
| Marli Bottle Trap Square - Brushed Nickel | 11919 | 10 | 5 | - | 2 | 5 | 1 | - | 1 | - | - | - | - |
Product Documents
| WARRANTY |  |
| Marli Square Bottle Trap – Specification | |
