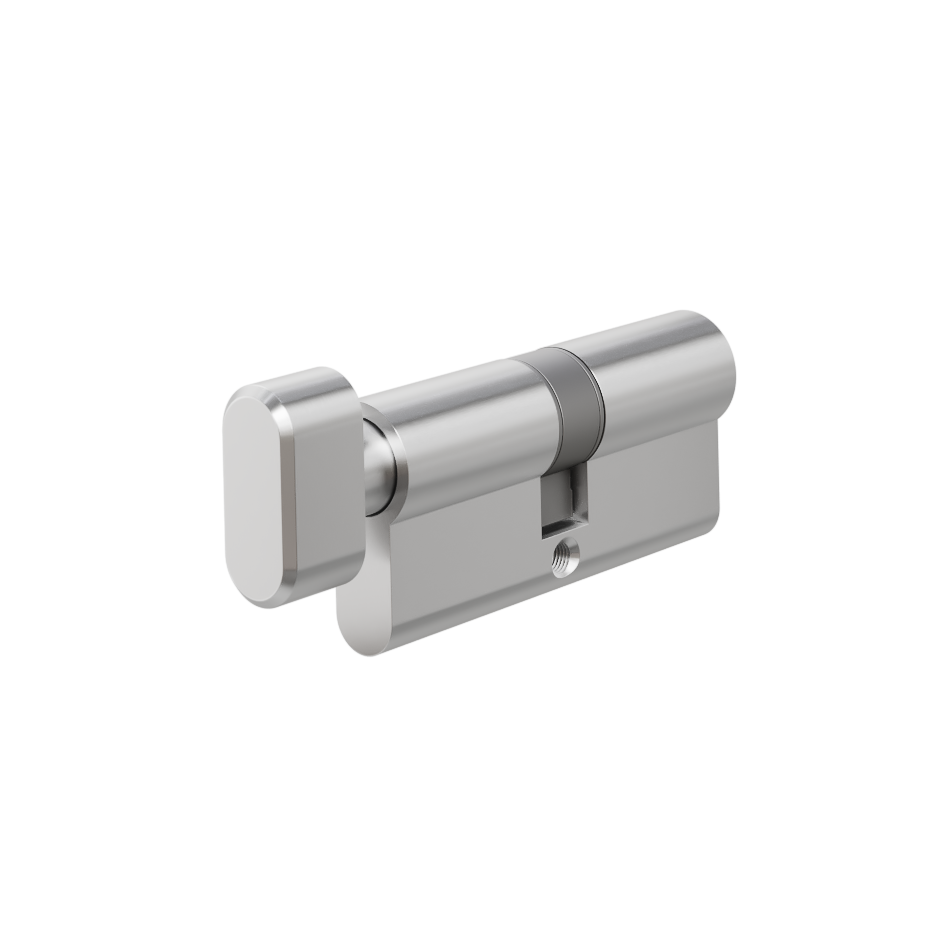

Euro Cylinder Single (Key/Turn) 70mm - Stainless Steel

SKU: 16300

in stock


Euro Cylinder Single (Key/Turn) 70mm - Stainless Steel

SKU: 16300

in stock


$43.90
Add to Cart
Also Bought With
Chevron-Down

Product Details

The Euro Single Cylinder features a standardised locking mechanism with key-to-turn functionality. Although locking is possible from both sides, key-to-turn means only one side of the lock is secured by a key. This setup is ideal for situations where security is only required from one side of the door, such as front and back entryways, garages, or laundry rooms.

Constructed from durable 316 stainless steel, this euro cylinder locking system is engineered to withstand environmental conditions, making it ideal for both indoor and entryways. It is available in four distinctive colours for effortless design coordination.

Features :

– Highly durable 316 stainless steel construction with anti-corrosive properties
– Secure six pin lock for additional security
– Our Euro Cylinders have been rigorously tested to meet Australian Standards (AS 4145.2-2008) and achieve the highest rating for durability (D8, 500 000 cycles), with corrosion resistance and security ratings (C7, S7).

Dimensions:

– Backset: 60mm
– Faceplate Height: 235mm
– Faceplate Width: 24mm
– Depth: 89mm

Product Info

  • Features
  • Specifications
  • Environment
  • Downloads
316 Stainless Steel
Anti-Corrosion
Highly Durable
SKU 16300
Weight 0.281kg
Construction 316 Stainless Steel
Functionality Key / Turn
Dimensions (mm) Backset: 60mm
Faceplate Height: 235mm
Faceplate Width: 24mm
Depth: 89mm

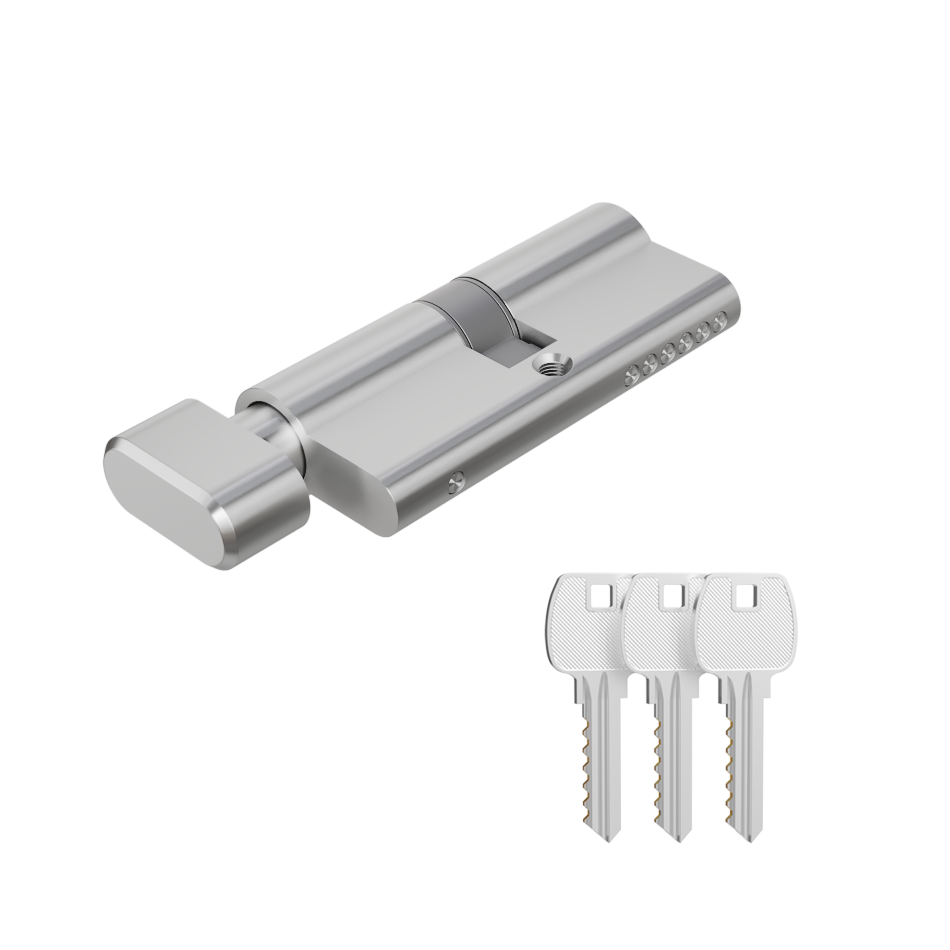

What's In The Box 1 x Euro Cylinder
1 x Fixing Bolt
3 x Keys
ETA
Australian Standards Meets AS 4145.2-2008
Durability: D8, 500 000 Cycles
Corrosion Resistance: C7
Security Rating: S7

Specification guides can be found under the Downloads tab.

Bim Files
View Library Download

Product FAQs


Is the Euro Cylinder Single compatible with my entry pull?

No, a euro cylinder will only work when fitted with a compatible lock mechanism and door handle, as it necessitates spring loading for activation and deactivation. You can purchase an ABI Roller Mortice Lock or Mortice Lock that is compatible with the Euro Cylinder Single. This can be paired with your entry door pull to secure your front door.


What is the setback of the Euro Cylinder?

The setback of the euro cylinder measures 60mm.


What door size is suitable for the Euro Single Cylinder?

The Euro Cylinder Single works with doors ranging from 30mm to 45mm in thickness.
