Product Details

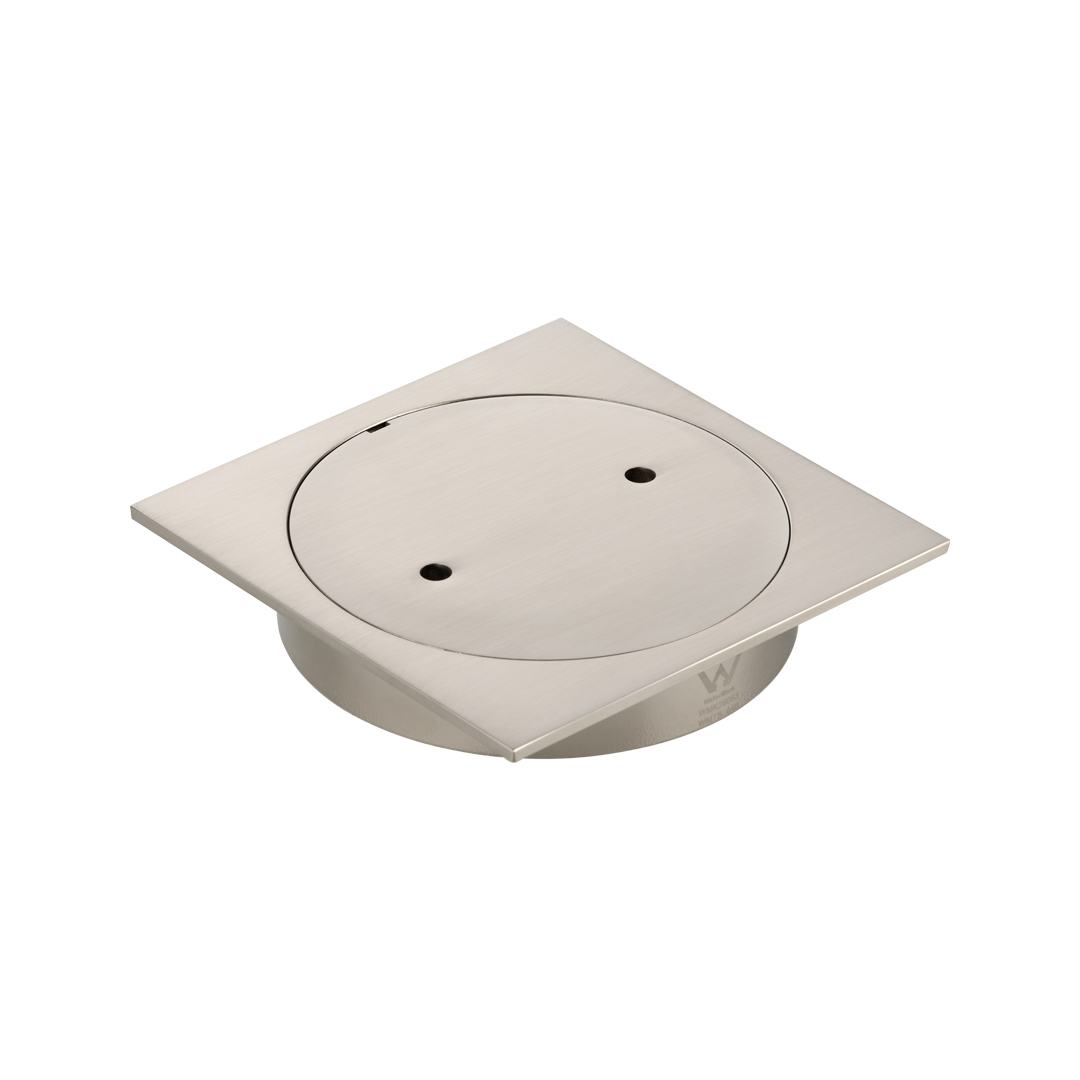

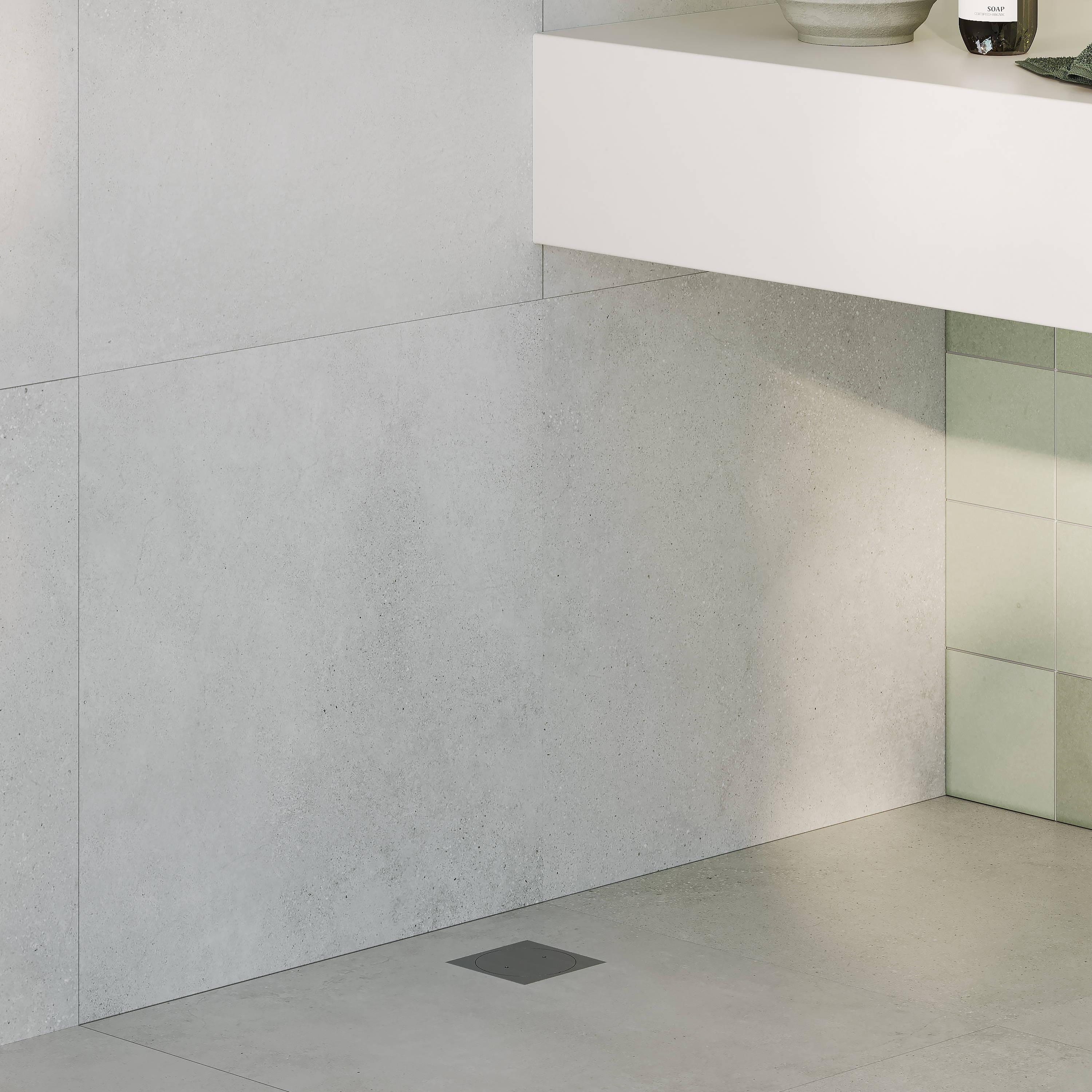

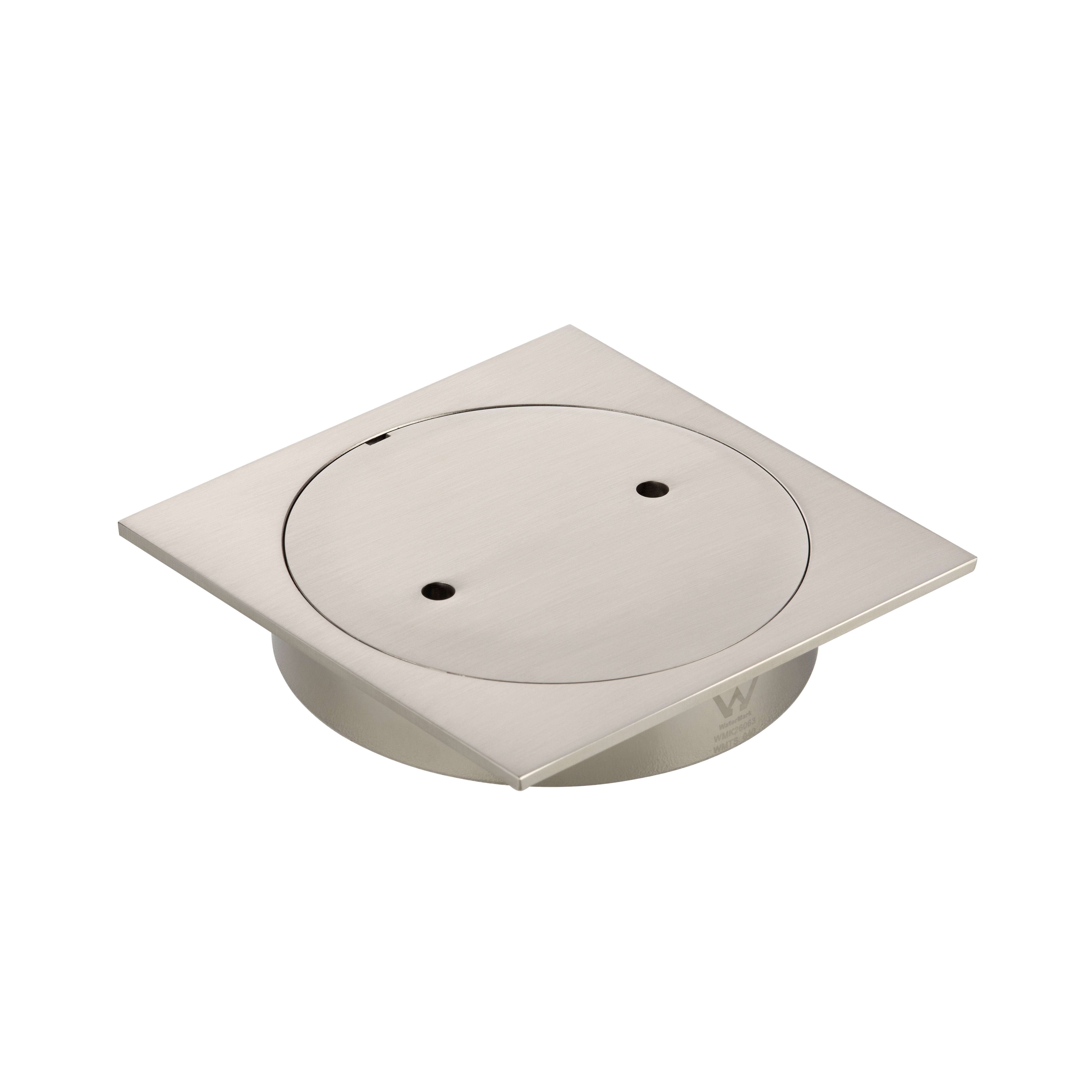

To aid with clearing blockages, the Inspection Outlet (or Clear Out) is installed near a toilet to easily access waste pipes beneath your bathroom floor.
Solid brass construction ensures durability, while a small recess in the design accommodates a screwdriver to help lever the lid off.
Features:
– Solid brass construction
– Bayonet-type locking mechanism (90 degree turn to lock)
– Recess to accommodate a screwdriver
Dimensions:
– Length: 110mm
– Width: 110mm
– Height: 21mm
Shop Other Colour Options
Shop Other Colour Options
Product Info
| SKU | 14787 |
| Weight | 0.4kg |
| Brand | ABI Interiors |
| Finish/Coating | (PVD) Brushed Nickel - ABI’s Heat Shield – Industrial Grade Electro Colouring System (Physical Vapour Deposition) |
| Construction | Solid Brass |
| Dimensions | Length: 110mm Width: 110mm Height: 21mm |
| Outlet Size | Suitable for 100mm Diameter pipe |
| What's In The Box | 1 x Lid 1 x Base |
| Warranty | 25 Years structural warranty 5 Years finish/coating warranty |
| ETA |
Specification guides can be found under the Downloads tab.
| PRODUCT DESCRIPTION | RESIDENTIAL WARRANTY | NON-RESIDENTIAL WARRANTY | OUTDOOR WARRANTY | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Name & Finish | SKU | Structure | Finish | Cartridge | Other | Structure | Finish | Cartridge | Other | Structure | Finish | Cartridge | Other |
| ABI Inspection Outlet Square - Brushed Nickel | 14787 | 25 | 5 | - | - | 5 | 1 | - | - | - | - | - | - |
Product Documents
| ABI Inspection Outlet Square Specification |  |
Bim Files
| View Library |  |
