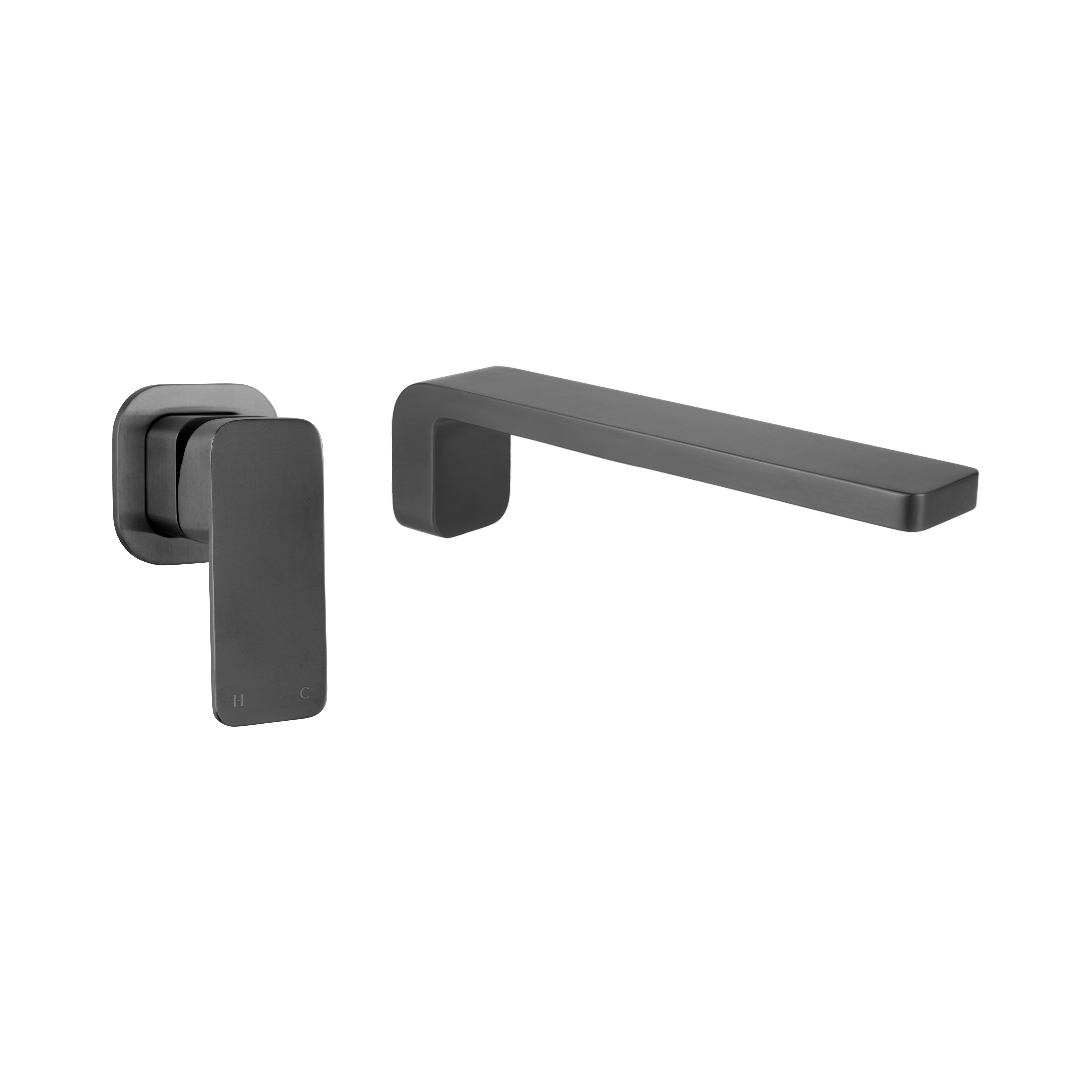

Nesso Minimal Mixer & Spout Set - Brushed Gunmetal
SKU: 17933
T44260| WELS: 5 Star | Litres / min: 6
Free Delivery on Orders Over £500!
Nesso Minimal Mixer & Spout Set - Brushed Gunmetal
SKU: 17933
T44260| WELS: 5 Star | Litres / min: 6
Free Delivery on Orders Over £500!
Colour: Brushed Gunmetal
Product Details
Crafted from durable 304 stainless steel, the Nesso Minimal Mixer & Spout Set is a seamless fusion of form and function, defined by its sleek lines and subtle rounded corners for a refined, modern aesthetic.
The mixer features a flat-edged backplate and handle paddle, offering precise temperature and pressure control to elevate both usability and style. Completing the set, the wall-mounted spout presents a streamlined silhouette with a seamlessly integrated backplate. Together, they form a sophisticated statement, bringing effortless elegance to any bathroom space.
Features:
– 304 stainless steel construction offers durability for indoor and commercial use.
– Lead-free manufacturing.
– ABI HeatShield PVD Electro Colouring System provides a more corrosion-resistant finish while remaining environmentally friendly.
– CNC-engraved hot and cold signs on the minimal mixer for subtle sophistication.
– A custom flat grub screw cover to minimise the visual impact of screw fasteners.
– Aesthetic slim design to complement modern interiors.
Dimensions:
Mixer:
– Height: 111mm
– Width: 63mm
– Depth: 56mm
Spout:
– Height: 60mm
– Width: 42mm
– Depth: 220mm
– Reach: 200mm
– Aerator: 25mm above outlet
Browse our complete range of lead free tapware.
Product Features
Lead-Free
Highly Durable
Anti-Corrosion
Material
Construction
304 Stainless Steel
Finish/Coating
(PVD) Brushed Gunmetal - ABI’s Heat Shield – Industrial Grade Electro Colouring System (Physical Vapour Deposition)
*We implement strict quality procedures to minimise colour variations, however we acknowledge that there may be minor differences between batches. We encourage you to check over your items once received to ensure that you are satisfied with the finish. Should you receive anything of concern, our team is here to help!
For more information on our finish quality
Specifications
| SKU | 17933 |
| Weight | kg |
| ETA | |
| Construction | 304 Stainless Steel |
| Finish/Coating | (PVD) Brushed Gunmetal - ABI’s Heat Shield – Industrial Grade Electro Colouring System (Physical Vapour Deposition) |
| Dimensions (mm) | Mixer: Height: 111mm Width: 63mm Depth: 56mm Spout: Height: 60mm Width: 42mm Depth: 220mm Reach: 200mm Aerator: 25mm above outlet |
| What's In The Box? | In-Wall Kit (required for rough-in): 1 x Stainless Steel 304 In-wall Handle Kit (required for fit-off): 1 x Flat grub screw cover 1 x Mixer Handle 1 x 15mm Sleeve 1 x 30mm Sleeve 1 x Dome 1 x Small Back Plate Nesso Wall Mounted Spout (required for fit-off): 1 x Spout |
Specification guides can be found under the Downloads tab.
Downloads
Product Documents
| Nesso Minimal Mixer & Spout Set - Specification |  |
Bim Files
| View Library |  |
Brushed Gunmetal
At ABI, we use the highest quality materials and colouring processes to ensure a durable and timeless finish that you will love for years to come. Like many other materials, the colour may appear differently from product to product due to lighting within the installation location and reflection on products with different surfaces (flat and curved).
While we do our best to ensure consistency between batches and use strict colour toning and matching quality procedures to lessen variations, we acknowledge that there may be minor variations between batches. We encourage you to check over your items once received to ensure that you are satisfied with the finish. Should you receive anything of concern, our team is here to help!
| PRODUCT DESCRIPTION | RESIDENTIAL WARRANTY | NON-RESIDENTIAL WARRANTY | OUTDOOR WARRANTY | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Name & Finish | SKU | Structure | Finish | Cartridge | Other | Structure | Finish | Cartridge | Other | Structure | Finish | Cartridge | Other |
| Nesso Minimal Mixer & Spout Set - Brushed Gunmetal | 17933 | 25 | 5 | 7 | 2 | 10 | 1 | 5 | 1 | - | - | - | - |
5
Water Rating
6
Litres Per Minute
T44260
Registration Number
Product FAQs
How do I determine which sleeve length is appropriate for my fitting?
The sleeve length you select for your in-wall component is determined by the depth and thickness of your wall.
Is the Nesso Minimal Mixer Infiniti compatible?
The Nesso Minimal Mixer has the same sleeve and setback options as our Infiniti Technology. However, it is not compatible with our existing brass Infiniti range as the in-wall component is different.
How do I ensure the square profile is level or square to the room when installing?
When tightening the Nesso Wall Mounted Spout to your wall or tiles, a combination of thread tape and the compression of the o-ring will give you extra leeway when turning so you can achieve a level installation.
Is the Nesso Collection lead-free?
Yes. Constructed from 304 stainless steel, the Nesso Collection is completely lead-free.
Can the Nesso Collection be used outdoors?
The Nesso Collection is not suitable for external use. We recommend a 316 stainless steel construction for outdoor areas.
What type of coating is used on this product, and how durable is it?
This product features ABI’s advanced Heat Shield Physical Vapour Deposition (PVD) coating, a high-performance electro-colouring process that offers significantly greater durability than standard powder coating, providing exceptional resistance to wear, tarnishing, and corrosion.
What’s the best way to clean stainless steel products?
Our stainless-steel range will wear the same as any standard stainless-steel product. We recommend cleaning weekly using natural or mild cleaning products or a stainless-steel-specific cleaning product. Please refrain from using any harsh or abrasive products on your items, as this will impact the colour.
