Colour: Brushed Gunmetal
Product Details

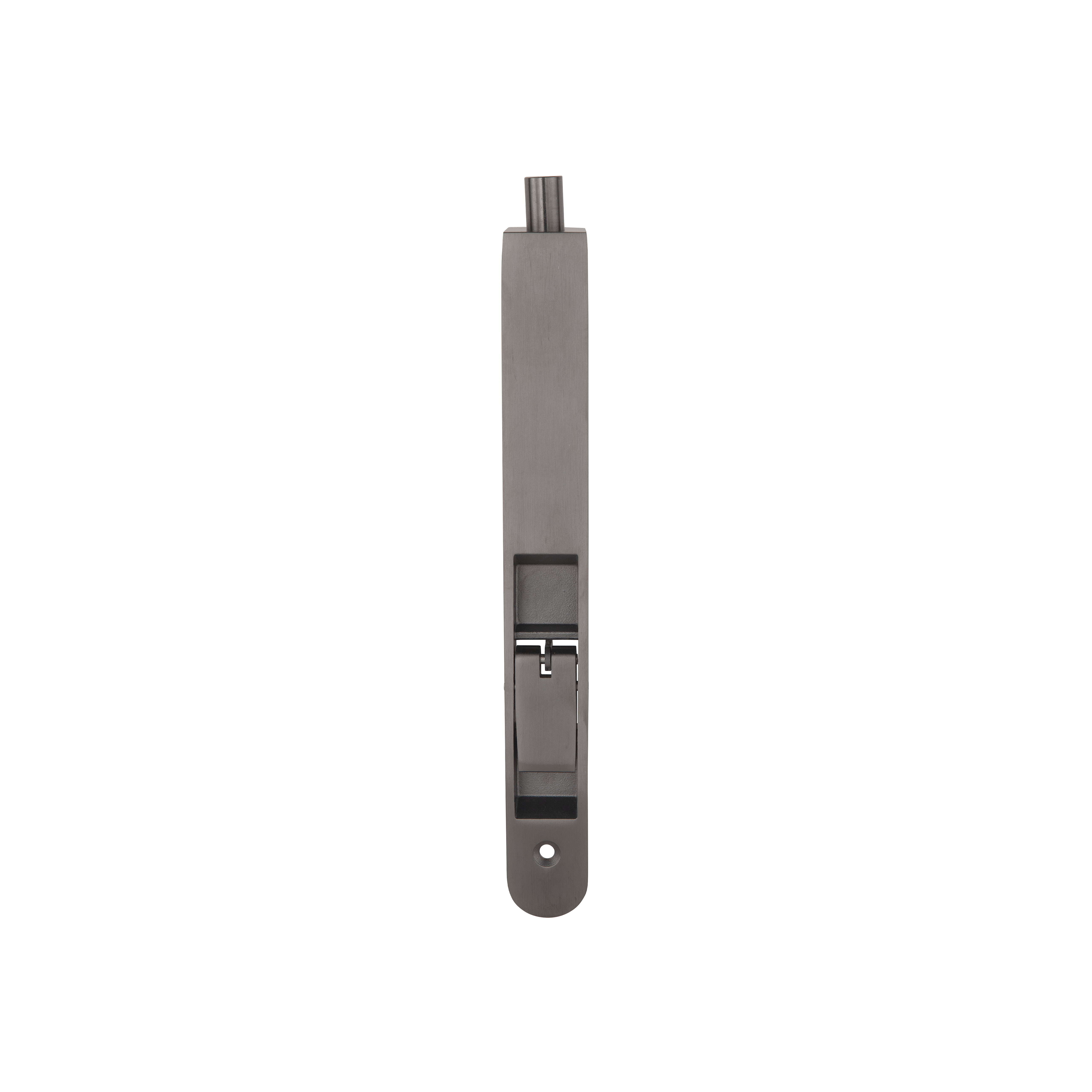

Crafted from durable 304 stainless steel, our Door Flush Bolt is designed for indoor and commercial use. It provides secure door locking by preventing unwanted swinging, ensuring stability and safety, and can be easily disengaged when required.
The concealed recessed design combines sleek aesthetics with reliable functionality, making it ideal for double, French, bi-fold, and utility doors.
Features:
– 304 stainless steel construction offers durability for indoor and commercial use.
– Top and bottom mounting.
Dimensions:
– Depth: 37mm
– Length: 204mm
– Width: 25mm
– Bolt Diameter: 11mm
– Bolt Throw: 15mm
Product Features
304 Stainless Steel
.svg){kind=icon}
PVD (Physical Vapour Deposition)
Top & Bottom Mounted
Material
Construction
304 Stainless Steel
Finish/Coating
(PVD) Brushed Gunmetal - ABI’s Heat Shield – Industrial Grade Electro Colouring System (Physical Vapour Deposition)
*We implement strict quality procedures to minimise colour variations, however we acknowledge that there may be minor differences between batches. We encourage you to check over your items once received to ensure that you are satisfied with the finish. Should you receive anything of concern, our team is here to help! For more information on our finish quality
For more information on our finish quality
Specifications
| SKU | 18080 |
| Weight | 0.4kg |
| ETA | |
| Construction | 304 Stainless Steel |
| Finish/Coating | (PVD) Brushed Gunmetal - ABI’s Heat Shield – Industrial Grade Electro Colouring System (Physical Vapour Deposition) |
| Dimensions (mm) | Length: 204mm Width: 25mm Height: 37mm Bolt Diameter: 11mm Bolt Throw: 15mm |
| What's In The Box? | 1 x Flush Door Bolt 1 x Strike Plate 2 x 20mm Screws 2 x 30mm Screws |
| Door Compatibility | 35m+ Timber Doors (Double/French, Bifold and Utility Doors) |
Specification guides can be found under the Downloads tab.
Downloads
Product Documents
| Door Flush Bolt - Product Specification |  |
Bim Files
| View Library |  |
Brushed Gunmetal
At ABI, we use the highest quality materials and colouring processes to ensure a durable and timeless finish that you will love for years to come. Like many other materials, the colour may appear differently from product to product due to lighting within the installation location and reflection on products with different surfaces (flat and curved).
While we do our best to ensure consistency between batches and use strict colour toning and matching quality procedures to lessen variations, we acknowledge that there may be minor variations between batches. We encourage you to check over your items once received to ensure that you are satisfied with the finish. Should you receive anything of concern, our team is here to help!
| PRODUCT DESCRIPTION | RESIDENTIAL WARRANTY | NON-RESIDENTIAL WARRANTY | OUTDOOR WARRANTY | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Name & Finish | SKU | Structure | Finish | Cartridge | Other | Structure | Finish | Cartridge | Other | Structure | Finish | Cartridge | Other |
| Door Flush Bolt - Brushed Gunmetal | 18080 | 10 | 2 | - | 1 | 5 | 1 | - | 1 | - | - | - | - |
Product FAQs
Can the Door Flush Bolt be used on French and bi-fold doors?
Yes, the Door Flush Bolt is suitable for French and bi-fold doors.
Is this flush door bolt fire-rated?
No, the flush door bolt isn’t fire-rated.
Can I use the Door Flush Bolt on doors that require extra security, such as front doors?
We wouldn’t recommend using this bolt for front doors due to its 15mm engagement. A 20mm engagement bolt is more suitable for front door purposes.
