Asher Wall-Hung Toilet Suite & In-Wall Cistern II

SKU: 19819

L47013| WELS: 4 Star | Litres / min: Full Flush 4.4L, Half Flush 3.0L, Average Flush 3.5L


Asher Wall-Hung Toilet Suite & In-Wall Cistern II

SKU: 19819

L47013| WELS: 4 Star | Litres / min: Full Flush 4.4L, Half Flush 3.0L, Average Flush 3.5L


$1,099.80

Out Of Stock!

Pair with:

Select Toilet Button
Select Toilet Clips

Product Details

faq open icon

The Asher Wall-Hung Toilet Suite II is a refined, space-saving solution for contemporary bathrooms and powder rooms. Featuring the Asher Wall-Hung Toilet Pan paired with the ABI Wall-Hung Toilet Cistern – 90mm, this streamlined system delivers modern aesthetics, enhanced hygiene, and reliable performance.

The rimless pan features powerful flush technology for a thorough, water-efficient clean. Its wall-hung design simplifies floor cleaning, while the gloss white porcelain finish is complemented by a durable soft-close seat.

Concealed within the wall, the slim 90mm cistern maximises space and suits smaller cavities, creating a minimalist finish. Complete the look with the Zaaha Toilet Buttons to add a subtle touch of luxury.

Please Note:
– A licensed trade is required to install this product.
– The cistern thickness is between 90–100mm; please ensure sufficient wall cavity space prior to installation.
– A flush button is not included. For a complete install, purchase our Zaaha Toilet Buttons.

Features:
– Wall-hung, space-saving design
– Powerful rimless flush technology
– Gloss white glazed porcelain pan
– Soft-close seat (hardened polypropylene)
– Slimline concealed cistern for compact cavities

Toilet Pan Dimensions:
– Length: 555mm
– Width: 365mm
– Height: 362mm

In-Wall Cistern Dimensions:
– Width: 590mm
– Height: 1260mm
– Thickness: 90–100mm

Product Features

Glazed Porcelain

Soft Close

Ease of Cleaning


Material

faq open icon

Construction

Pan: Glazed Porcelain Toilet Seat: Soft close - Hardened Polypropylene (PP) Cistern: HDPE Plastic Body & Iron Frame

*We implement strict quality procedures to minimise colour variations, however we acknowledge that there may be minor differences between batches. We encourage you to check over your items once received to ensure that you are satisfied with the finish. Should you receive anything of concern, our team is here to help!

For more information on our finish quality

View Product Quality
Arrow-Right

Specifications

faq open icon
SKU 19819
Weight 50kg
Brand ABI Interiors
Dimensions (mm) Pan Dimensions:
Width: 365mm
Height: 362mm
Length: 555mm

Cistern Dimensions:
Width: 590mm
Height: 1260mm
Thickness: 90-100mm
Construction Pan: Glazed Porcelain
Toilet Seat: Soft close - Hardened Polypropylene (PP)
Cistern: HDPE Plastic Body & Iron Frame
Installation Wall-Mounted
What's In The Box Box 1:
1 x Wall-Hung Toilet Pan
2 x Cap
2 x Mounting Lug
2 x Toilet Seat Bracket
2 x Toilet Seat Clip
1 x Toilet Seat
2 x Mounting Plug Nut
2 x Mounting Plug
2 x Set Screw
1 x Allen Key 6mm

Box 2:
1x Wall Hung In-Wall Toilet Cistern (90mm)

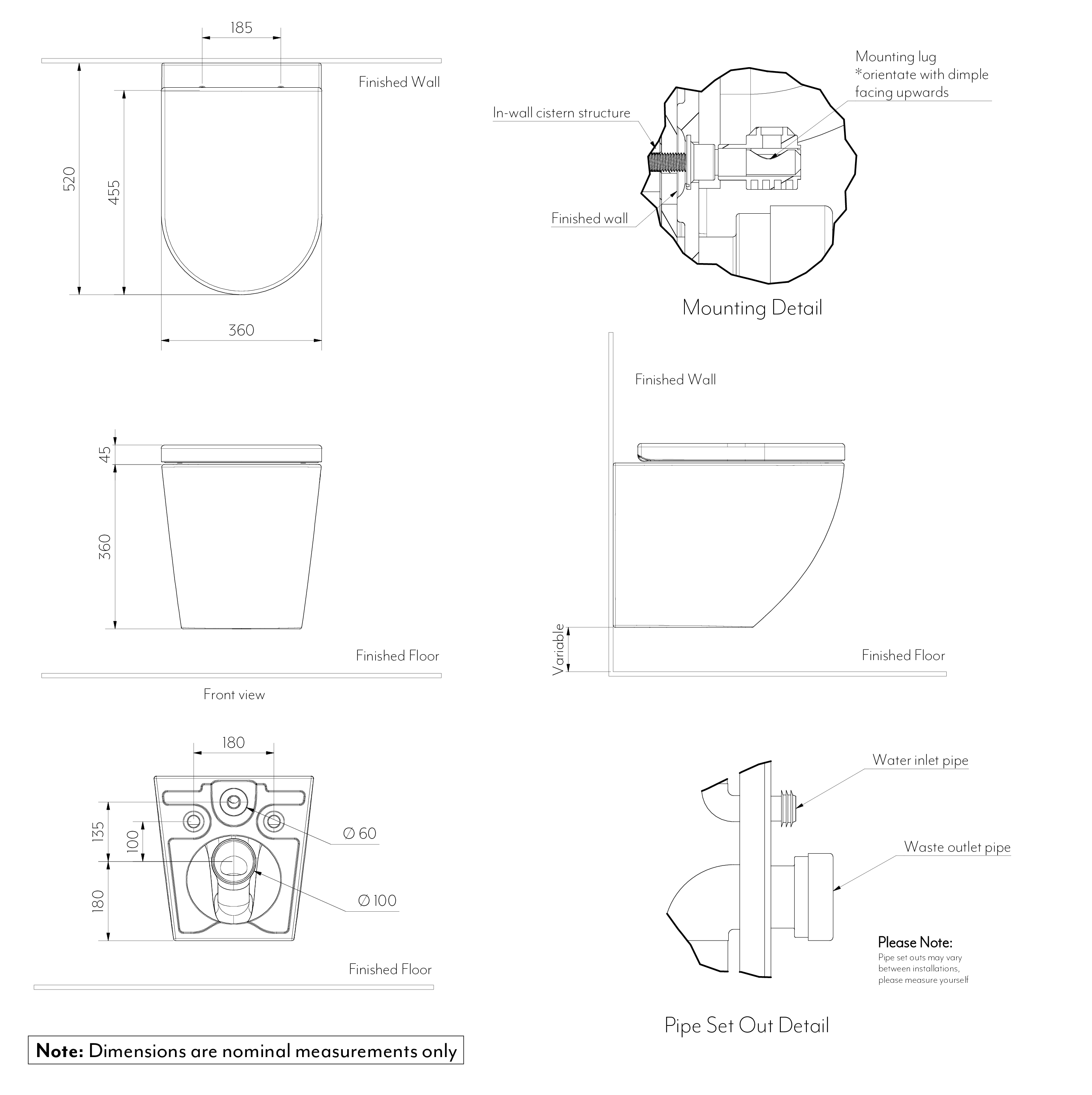

Specification guides can be found under the Downloads tab.


Downloads

faq open icon

  • Warranty
  • Environment
PRODUCT DESCRIPTION RESIDENTIAL WARRANTY NON-RESIDENTIAL WARRANTY OUTDOOR WARRANTY
Name & Finish SKU Structure Finish Cartridge Other Structure Finish Cartridge Other Structure Finish Cartridge Other
ABI Wall-Hung Toilet Cistern 12620 5 - - 2 5 - - 1 - - - -
Asher - Wall-Hung Toilet Pan 14469 10 10 - 5 10 10 - 5 - - - -
4

Water Rating

Full Flush 4.4L, Half Flush 3.0L, Average Flush 3.5L

Litres Per Minute

L47013

Registration Number

Product FAQs


How do I best clean the Asher wall hung toilet pan?

faq expand

Clean the porcelain with liquid detergent or soap and water.


What components are included with the purchase?

faq expand

1x Wall-Hung Toilet Pan
1x In-Wall Cistern (Slimline)


What is the weight capacity of the Asher Wall-Hung Toilet?

faq expand

The Asher Wall-Hung Toilet Pan has a weight capacity of 200kgs.


Is the Asher Wall Hung Toilet Pan a rimless flush?

faq expand

Yes, the Asher Wall Hung Toilet Pan II has a rimless flush technology concealed within the body of the pan, where it is channelled through holes on the underside of the brim. Please refer to the following diagram here.
